dimensions | 45 x 0 x 0 |
Weight | 1.99 kg |
A1 [mm] | 18 |
A [mm] | 38 |
cage | polyamide |
clearence | C3 - greater than normal |
country of origin | Vietnam |
Dynamic load rating [N] | 32500 |
d [mm] | 45 |
J [mm] | 148 |
L2 [mm] | 108 |
L [mm] | 188 |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |

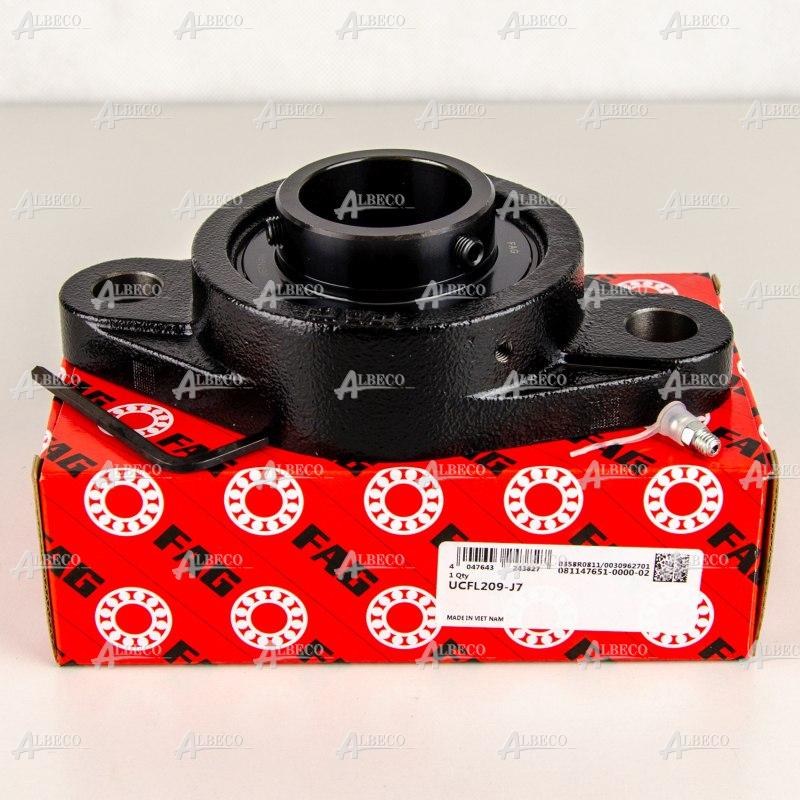

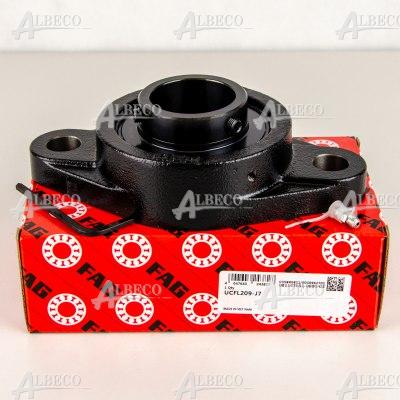

UCFL209-J7 FAG
Cast iron bearing unit
manufacturer | FAG |
dimensions | 45 x 0 x 0 |
Weight | 1.99 kg |
A [mm] | 38 |
d [mm] | 45 |
L [mm] | 188 |
L2 [mm] | 108 |
clearence | C3 - greater than normal |
tolerance | hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG) |
type | cast iron bearing unit |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
A1 [mm] | 18 |
J [mm] | 148 |
Dynamic load rating [N] | 32500 |
static load rating [N] | 20400 |
cage | polyamide |
country of origin | Vietnam |
Technical materials
Plewiska: 5 pcs
Plewiska: 7 pcs
Plewiska: 3 pcs
Katowice: 5 pcs
Olsztyn: 5 pcs
1 day: 106 pcs
2 weeks: 62 pcs
Plewiska: 8 pcs
1 day: 3 pcs
2 weeks: 8 pcs
Plewiska: 24 pcs
1 day: 1 pcs
2 weeks: 61 pcs
Plewiska: 2 pcs
1 day: 74 pcs
Plewiska: 3 pcs
1 day: 94 pcs
Loctite 243 (250ml) LOCTITE
IL60-140/6H-B35 FKL
CR30MCA PBC
TMMA 100H SKF
