You are here: Bearing housings and units Bearing units Cast iron housing units UCT202-J7 FAG

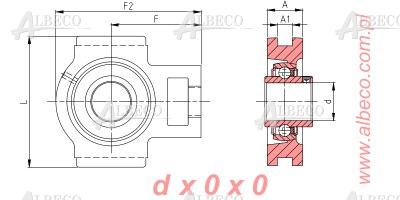

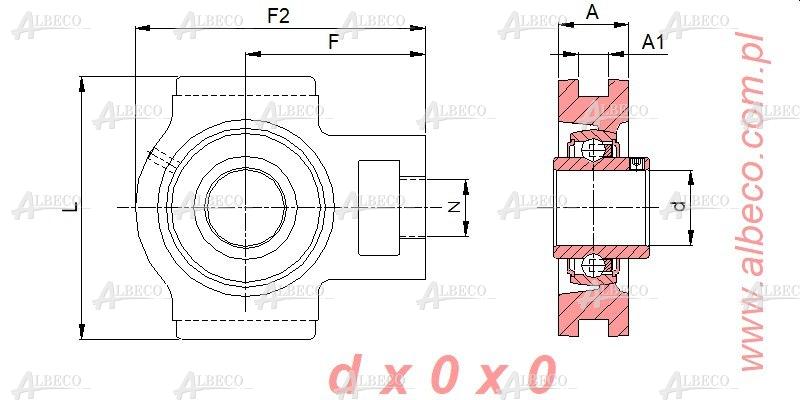

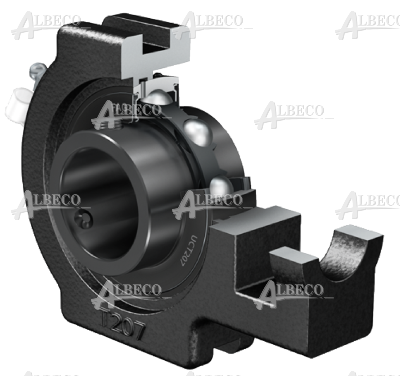

Cast iron bearing unit

UCT202-J7 FAG

Name: UCT202-J7 FAG
Rating: 4.7 (15 reviews)

dimensions	15 x 0 x 0
Weight	0.75 kg
A1 [mm]	12
A [mm]	21
cage	polyamide
clearence	C3 - greater than normal
d [mm]	15
F2 [mm]	94
F [mm]	61
L [mm]	89
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
tolerance	hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG)
type	cast iron bearing unit

Attributes Substitutes (1)

UCT202-J7 FAG

Cast iron bearing unit

Attributes

manufacturer	FAG
dimensions	15 x 0 x 0
Weight	0.75 kg
A [mm]	21
d [mm]	15
F [mm]	61
L [mm]	89
clearence	C3 - greater than normal
tolerance	hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG)
type	cast iron bearing unit
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
A1 [mm]	12
F2 [mm]	94
cage	polyamide
