You are here: Pneumatics and hydraulics Connectors and adapters QSL-1/2-10 FESTO

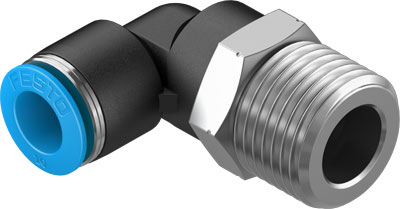

Elbow connector

QSL-1/2-10 FESTO

Name: QSL-1/2-10 FESTO
Rating: 4.5 (7 reviews)

190661 FESTO 190661 FESTO

Plewiska (141)

on stock

Details Attributes

QSL-1/2-10 FESTO

Elbow connector

Feature	Value
Size	Standard
Nominal size	8.3 mm
Type of seal on screw-in stud	coating
Assembly position	Any
Design structure	Push/pull principle
Operating pressure complete temperature range	-0.95 ... 6 bar
Temperature dependent operating pressure	-0.95 ... 14 bar
Maritime classification	see certificate
Corrosion resistance classification CRC	1 - Low corrosion stress
Ambient temperature	-10 ... 80 °C
Product weight	57 g
Pneumatic connection, port 1	Male thread R1/2
Pneumatic connection, port 2	For tubing outside diameter 16 mm
Colour of release ring	blue
Materials note	Conforms to RoHS
Material housing	PBT
Material release ring	POM
Material of tubing seal	NBR
Material of tube retaining claw	High alloy steel, non-corrosive
