You are here: Bearing housings and units Bearing units Cast iron housing units PCJT20-XL-N INA

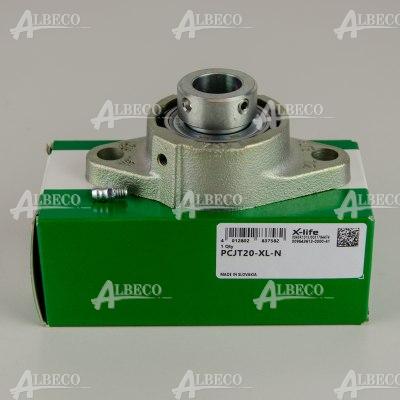

Cast iron bearing unit

PCJT20-XL-N INA

Name: PCJT20-XL-N INA
Rating: 4.5 (7 reviews)

dimensions	20 x 0 x 0
Weight	0.48 kg
A1 [mm]	10
A [mm]	28
cage	polyamide
clearence	C3 - greater than normal
country of origin	Vietnam
Dynamic load rating [N]	13600
d [mm]	20
groove in housing for fixing protective caps	yes
groove on outer ring	yes
J [mm]	90
L2 [mm]	61

Plewiska (12)

on stock

Attributes Substitutes (2)

PCJT20-XL-N INA

Cast iron bearing unit

manufacturer	INA
dimensions	20 x 0 x 0
Weight	0.48 kg
A [mm]	28
d [mm]	20
groove in housing for fixing protective caps	yes
L [mm]	112
L2 [mm]	61
clearence	C3 - greater than normal
groove on outer ring	yes
type	cast iron bearing unit
sealing	double-sided lip seal covered with a plate
A1 [mm]	10
J [mm]	90
Dynamic load rating [N]	13600
static load rating [N]	6600
cage	polyamide
country of origin	Vietnam
