You are here: Bearing housings and units Bearing units Cast iron housing units UCFL206-18-J7 FAG

Cast iron bearing unit

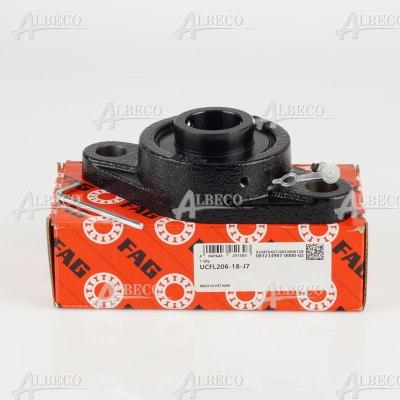

UCFL206-18-J7 FAG

Name: UCFL206-18-J7 FAG
Rating: 4.8 (13 reviews)

F2B-SC-102 DODGE F2B-SC-102 DODGE

dimensions	28.575 x 0 x 0
Weight	0.922 kg
A1 [mm]	14
A [mm]	31
cage	polyamide
clearence	C3 - greater than normal
country of origin	Vietnam
Dynamic load rating [N]	19500
d [mm]	28.575
J [mm]	117
L2 [mm]	80
L [mm]	148
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.

Plewiska (22)

on stock

Olsztyn (3)

on stock

Attributes Substitutes (2)

UCFL206-18-J7 FAG

Cast iron bearing unit

manufacturer	FAG
dimensions	28.575 x 0 x 0
Weight	0.922 kg
A [mm]	31
d [mm]	28.575
L [mm]	148
L2 [mm]	80
clearence	C3 - greater than normal
tolerance	hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG)
type	cast iron bearing unit
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
A1 [mm]	14
J [mm]	117
Dynamic load rating [N]	19500
static load rating [N]	11300
cage	polyamide
country of origin	Vietnam
