Name: UK216 FAG
Rating: 4.7 (8 reviews)

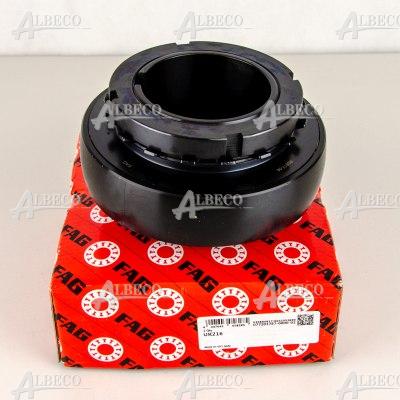

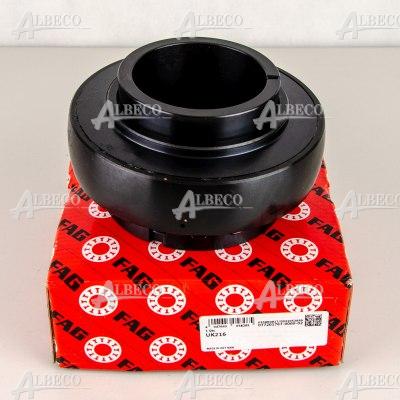

UK216 FAG

dimensions

70 x 140 x 78

Weight

3.22 kg

C - outer ring width (insert bearing) [mm]

cage

polyamide

clearence

C4 - greater than C3

country of origin

Vietnam

Dynamic load rating [N]

76000

d [mm]

D [mm]

140

inner ring width [mm]

rounded outer ring

yes

sealing

double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.

static load rating [N]

54000

Attributes Substitutes (6)

UK216 FAG

Insert ball bearing with adapter sleeve

manufacturer	FAG
dimensions	70 x 140 x 78
Weight	3.22 kg
inner ring width [mm]	46
C - outer ring width (insert bearing) [mm]	33
d [mm]	70
D [mm]	140
clearence	C4 - greater than C3
T [mm]	78
type	insert ball bearing with adapter sleeve
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
used with	H2316
rounded outer ring	yes
Dynamic load rating [N]	76000
static load rating [N]	54000
cage	polyamide
taper	taper 1:12
country of origin	Vietnam
