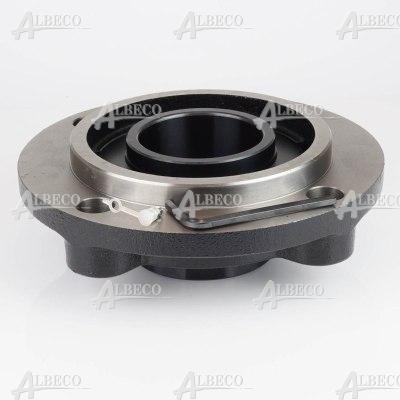

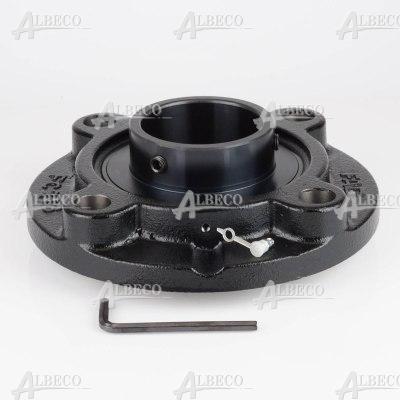

Cast iron bearing unit
dimensions | 80 x 0 x 0 |
Weight | 8.968 kg |
A1 [mm] | 18 |
A2 [mm] | 42 |
A [mm] | 58 |
clearence | C3 - greater than normal |
country of origin | Vietnam |
D2 [mm] | 200 |
Dynamic load rating [N] | 76000 |
d [mm] | 80 |
D [mm] | 240 |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
static load rating [N] | 54000 |
UCFC216-J7 FAG
Cast iron bearing unit
manufacturer | FAG |
dimensions | 80 x 0 x 0 |
Weight | 8.968 kg |
A [mm] | 58 |
d [mm] | 80 |
D [mm] | 240 |
clearence | C3 - greater than normal |
tolerance | hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG) |
type | cast iron bearing unit |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
A1 [mm] | 18 |
A2 [mm] | 42 |
D2 [mm] | 200 |
Dynamic load rating [N] | 76000 |
static load rating [N] | 54000 |
country of origin | Vietnam |
