Name: BEM 10-60-501 DURBAL
Rating: 4.5 (10 reviews)

BEM 10-60-501 DURBAL

dimensions

10 x 0 x 0

Weight

0.062 kg

A - rod end outer diameter [mm]

C - outer ring width [mm]

10.5

clearence

0÷10 µm

country of origin

Germany

Dynamic load rating [N]

10400

d [mm]

F - height to the axis [mm]

friction pair

stainless steel/PTFE composite

GL - thread length [mm]

inner ring width [mm]

L - rod head height [mm]

Attributes Substitutes (6)

BEM 10-60-501 DURBAL

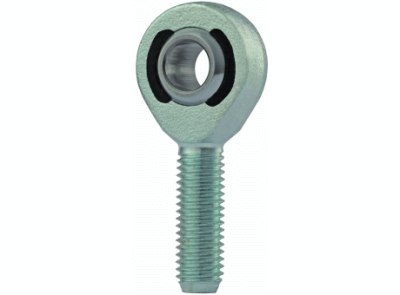

Stainless steel rod end

Attributes

manufacturer	DURBAL
dimensions	10 x 0 x 0
Weight	0.062 kg
A - rod end outer diameter [mm]	28
inner ring width [mm]	14
C - outer ring width [mm]	10.5
d [mm]	10
F - height to the axis [mm]	48
GL - thread length [mm]	29
thread	M10
L - rod head height [mm]	62
clearence	0÷10 µm
norm	DIN ISO 12240-4 serie K
friction pair	stainless steel/PTFE composite
type	stainless steel rod end
sealing	none
Dynamic load rating [N]	10400
static load rating [N]	15400
product line	Classic line
max. tilt angle [°]	13.5
country of origin	Germany
thread 2	external thread, right
