Name: 7309 BECBM SKF
Rating: 4.7 (5 reviews)

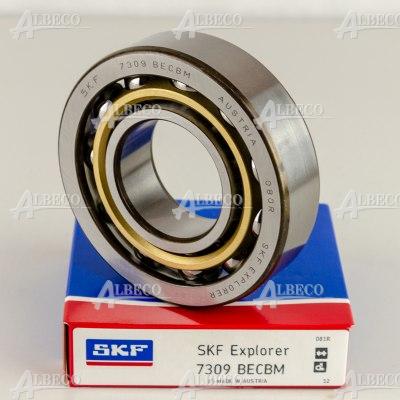

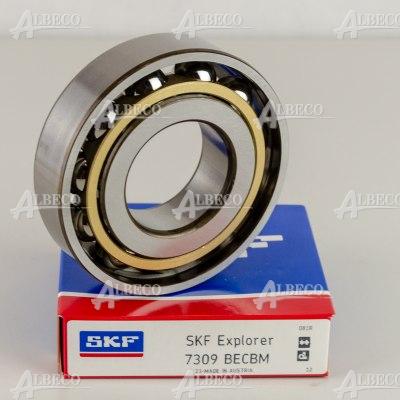

7309 BECBM SKF

dimensions

45 x 100 x 25

Weight

0.903 kg

bearing arrangement

for universal matching

cage

brass, guided by the rolling elements

contact angle [°]

country of origin

Austria

Dynamic load rating [N]

61000

grease

none

limiting speed [rpm]

11000

operating temp.

-20÷150°C

precision

P6: better than normal

preload

normal axial clearance

product feature

high precision bearing

Details Attributes Substitutes (7)

7309 BECBM SKF

Single row angular-contact ball bearing, high precision bearing (operating temp.: -20÷150°C)

Attributes

manufacturer	SKF
dimensions	45 x 100 x 25
Weight	0.903 kg
grease	none
operating temp.	-20÷150°C
type	single row angular-contact ball bearing
sealing	none
product feature	high precision bearing
Dynamic load rating [N]	61000
static load rating [N]	40500
contact angle [°]	40
cage	brass, guided by the rolling elements
preload	normal axial clearance
bearing arrangement	for universal matching
precision	P6: better than normal
country of origin	Austria
limiting speed [rpm]	11000
reference speed [rpm]	8500
