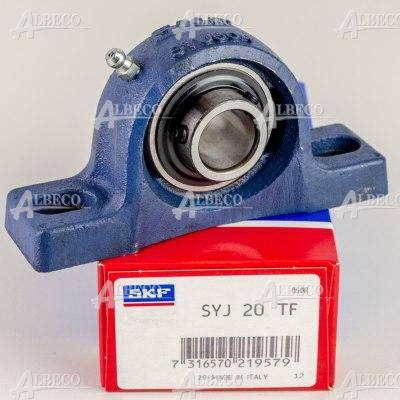

SYJ 20 TF SKF
Cast iron bearing unit
manufacturer | SKF |
dimensions | 20 x 0 x 0 |
Weight | 0.597 kg |
A [mm] | 34 |
d [mm] | 20 |
F [mm] | 33.3 |
L [mm] | 127 |
clearence | C3 - greater than normal |
N [mm] | 11.5 |
type | cast iron bearing unit |
A1 [mm] | 23 |
J [mm] | 97 |
F2 [mm] | 65 |
Dynamic load rating [N] | 12700 |
static load rating [N] | 6550 |
country of origin | Italy |
limiting speed [rpm] | 8500 |
