You are here: Bearing housings and units Bearing units Cast iron housing units SY 1.1/2 TF/VA228 SKF

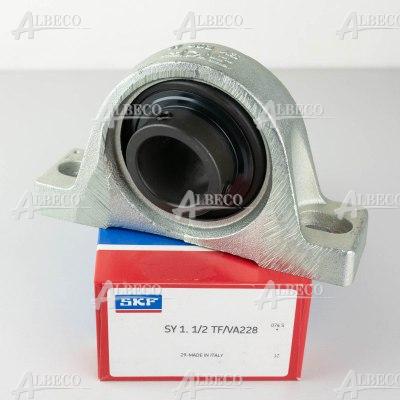

Cast iron bearing unit (operating temp.: max. 350°C)

SY 1.1/2 TF/VA228 SKF

Name: SY 1.1/2 TF/VA228 SKF
Rating: 4.5 (4 reviews)

dimensions	38.1 x 0 x 0
Weight	1.925 kg
A1 [mm]	30
A [mm]	48
cage	coronet cage made of graphite
clearence	C4 - greater than C3
country of origin	Italy
Dynamic load rating [N]	30700
d [mm]	38.1
F2 [mm]	99
F [mm]	49.2
grease	grease for the food a compliant with NSF-H1 recommendations
J [mm]	135.5

Plewiska (2)

on stock

Attributes

SY 1.1/2 TF/VA228 SKF

Cast iron bearing unit (operating temp.: max. 350°C)

Attributes

manufacturer	SKF
dimensions	38.1 x 0 x 0
Weight	1.925 kg
A [mm]	48
d [mm]	38.1
F [mm]	49.2
L [mm]	175
clearence	C4 - greater than C3
grease	grease for the food a compliant with NSF-H1 recommendations
operating temp.	max. 350°C
type	cast iron bearing unit
sealing	double-sided non-contact shields
A1 [mm]	30
J [mm]	135.5
F2 [mm]	99
Dynamic load rating [N]	30700
static load rating [N]	19000
cage	coronet cage made of graphite
country of origin	Italy
limiting speed [rpm]	150
