You are here: Power transmission Couplings Claw couplings AR24/32V SIT

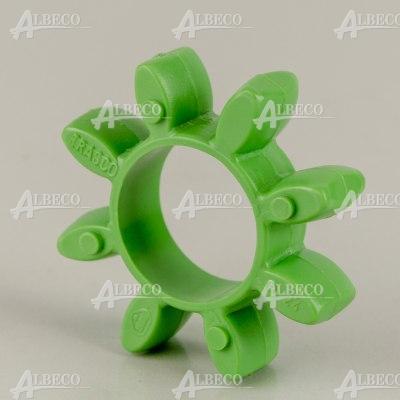

AR24/32V SIT

Spider, TRASCO (operating temp.: -30÷110°C)

dimensions 0 x 55 x 0
Weight 0.014 kg
colour green
country of origin Italy
E [mm] 55
hardness 64ShD, vibration damping, internal combustion engines
material polyurethane
max. angular displacement [°] 1.3
max. axial displacement [mm] 1,4
max. radial displacement [mm] 0.22
max. velocity [rpm] 10600
nominal torque [Nm] 75
N [mm] 14
Plewiska (12)

on stock

AR24/32V SIT

Spider, TRASCO (operating temp.: -30÷110°C)

manufacturer SIT
dimensions 0 x 55 x 0
Weight 0.014 kg
E [mm] 55
colour green
material polyurethane
max. angular displacement [°] 1.3
max. axial displacement [mm] 1,4
max. radial displacement [mm] 0.22
nominal torque [Nm] 75
N [mm] 14
max. velocity [rpm] 10600
operating temp. -30÷110°C
hardness 64ShD, vibration damping, internal combustion engines
type spider
product feature trasco
country of origin Italy
