You are here: Power transmission Couplings Claw couplings AR38/45R SIT

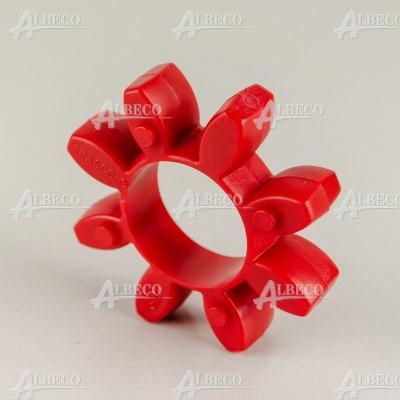

Spider, TRASCO

AR38/45R SIT

Name: AR38/45R SIT
Rating: 4.7 (15 reviews)

dimensions	0 x 80 x 0
Weight	0.043 kg
colour	red
country of origin	Italy
E [mm]	80
hardness	98ShA, high torque, low angular displacement, high torsional stiffness
material	polyurethane
max. angular displacement [°]	1.3
max. axial displacement [mm]	1.8
max. radial displacement [mm]	0.28
max. velocity [rpm]	7100
nominal torque [Nm]	325
N [mm]	18

Plewiska (85)

on stock

Katowice (6)

on stock

Attributes Substitutes (1)

AR38/45R SIT

Spider, TRASCO

Attributes

manufacturer	SIT
dimensions	0 x 80 x 0
Weight	0.043 kg
E [mm]	80
colour	red
material	polyurethane
max. angular displacement [°]	1.3
max. axial displacement [mm]	1.8
max. radial displacement [mm]	0.28
nominal torque [Nm]	325
N [mm]	18
max. velocity [rpm]	7100
operating temp.	-30÷90°C
hardness	98ShA, high torque, low angular displacement, high torsional stiffness
type	Spider
product feature	TRASCO
country of origin	Italy
