You are here: Power transmission Couplings Claw couplings AR65/75R SIT

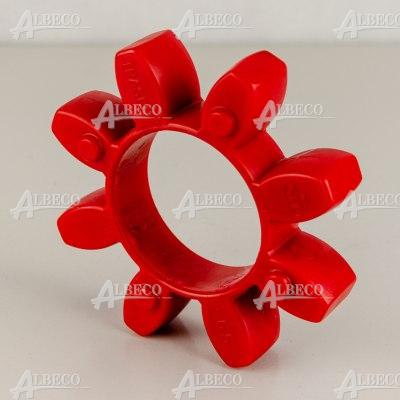

Spider, TRASCO

AR65/75R SIT

Name: AR65/75R SIT
Rating: 4.9 (12 reviews)

dimensions	0 x 135 x 0
Weight	0.177 kg
colour	red
country of origin	Italy
E [mm]	135
hardness	98ShA, high torque, low angular displacement, high torsional stiffness
material	polyurethane
max. angular displacement [°]	1.3
max. axial displacement [mm]	2.6
max. radial displacement [mm]	0.42
max. velocity [rpm]	4250
nominal torque [Nm]	950
N [mm]	26

Plewiska (80)

on stock

Olsztyn (1)

on stock

Katowice (4)

on stock

Attributes Substitutes (1)

AR65/75R SIT

Spider, TRASCO

Attributes

manufacturer	SIT
dimensions	0 x 135 x 0
Weight	0.177 kg
E [mm]	135
colour	red
material	polyurethane
max. angular displacement [°]	1.3
max. axial displacement [mm]	2.6
max. radial displacement [mm]	0.42
nominal torque [Nm]	950
N [mm]	26
max. velocity [rpm]	4250
operating temp.	-30÷90°C
hardness	98ShA, high torque, low angular displacement, high torsional stiffness
type	Spider
product feature	TRASCO
country of origin	Italy
