You are here: Power transmission Couplings Gear couplings GDM42 SIT

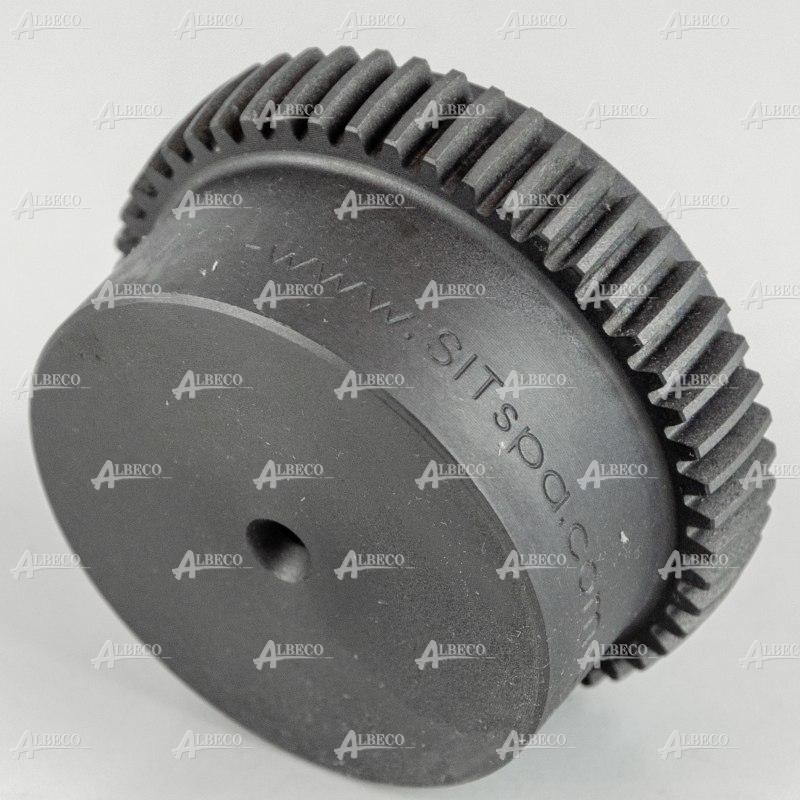

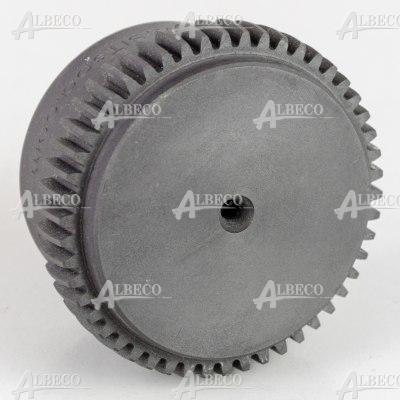

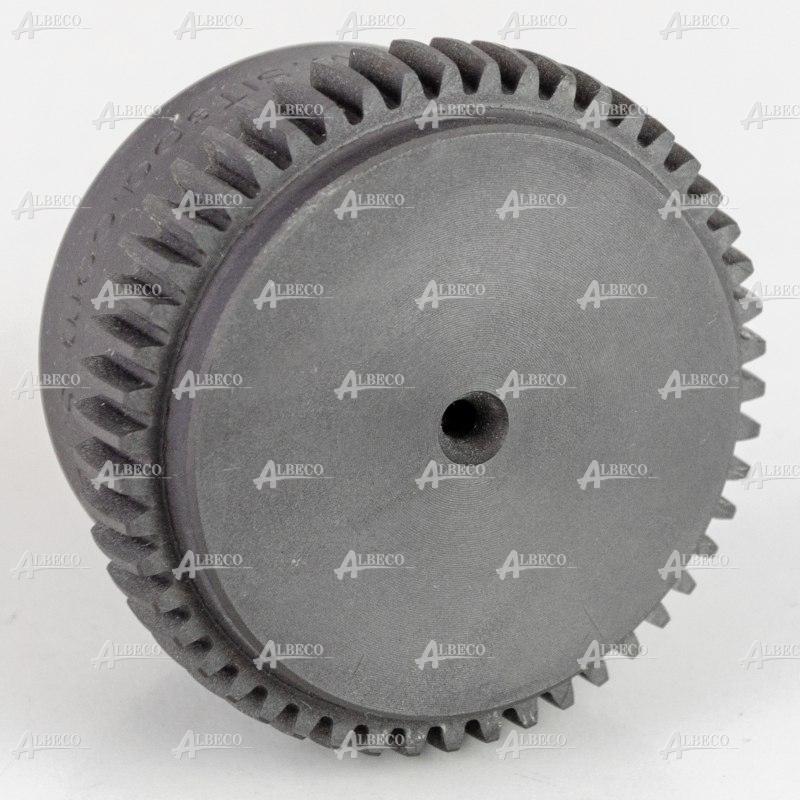

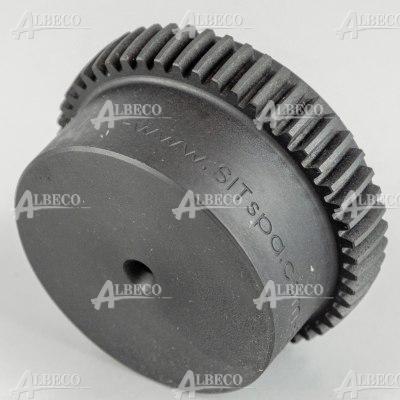

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

GDM42 SIT

dimensions	0 x 65 x 42
Weight	1.182 kg
country of origin	Italy
d [mm]	65
D [mm]	92
feature	set screw, pilot bore
feature	double cardanic teeth coupling hub
Fmax [mm]	42
material	steel
max. angular displacement [°]	±1
max. axial displacement [mm]	±1
max. radial displacement [mm]	±0,4
max. velocity [rpm]	6000

Plewiska (26)

on stock

Katowice (2)

on stock

Olsztyn (2)

on stock

Log in to see the price

SIT

Attributes Substitutes (5)

GDM42 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

Log in to see the price

Attributes

manufacturer	SIT
dimensions	0 x 65 x 42
Weight	1.182 kg
feature	set screw, pilot bore
feature	double cardanic teeth coupling hub
d [mm]	65
D [mm]	92
Fmax [mm]	42
material	steel
max. angular displacement [°]	±1
max. axial displacement [mm]	±1
max. radial displacement [mm]	±0,4
max. velocity [rpm]	6000
operating temp.	-25÷90°C
type	gear coupling hub
product feature	sitex
country of origin	Italy

Technical materials

Product's substitutes

GDM42F15 SIT

GDM42F15 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

15 x 65 x 42

Log in to ask for price and availability

GDM42F25 SIT

GDM42F25 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

25 x 65 x 42

in stock

Plewiska: 2 pcs

2-3 weeks: 50 pcs

Log in to see prices

GDM42F28 SIT

GDM42F28 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

28 x 65 x 42

in stock

Plewiska: 4 pcs

2-3 weeks: 50 pcs

Log in to see prices

GDM42F32 SIT

GDM42F32 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

32 x 65 x 42

in stock

Plewiska: 5 pcs

2-3 weeks: 34 pcs

Log in to see prices

GDM42F38 SIT

GDM42F38 SIT

Gear coupling hub, SITEX (operating temp.: -25÷90°C)

38 x 65 x 42

in stock

Plewiska: 4 pcs

2-3 weeks: 3 pcs

Log in to see prices
