You are here: Power transmission Couplings Backlash-free bellows couplings GSP16 SIT

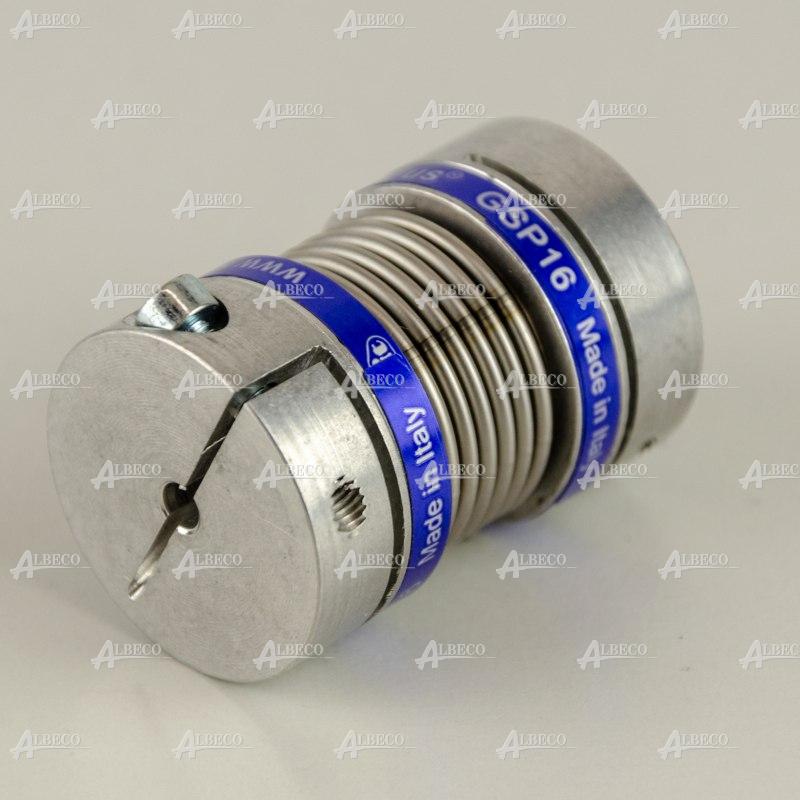

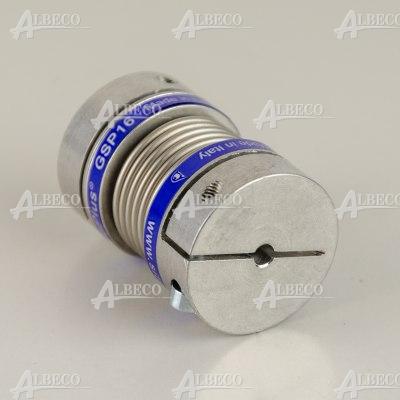

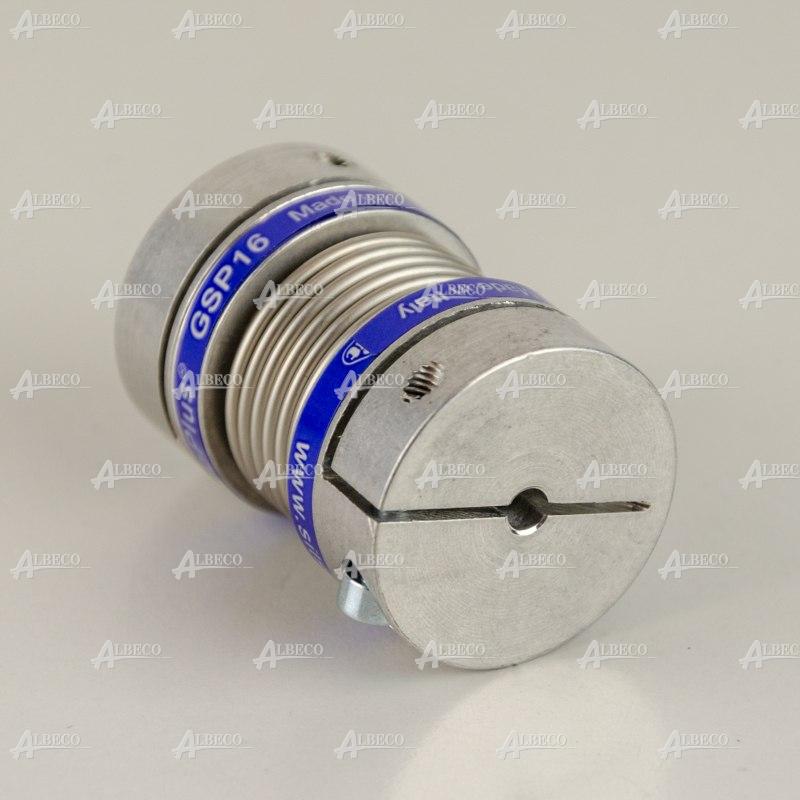

Metal bellow-type coupling, backlash free, SERVOPLUS

GSP16 SIT

Name: GSP16 SIT
Rating: 4.6 (3 reviews)

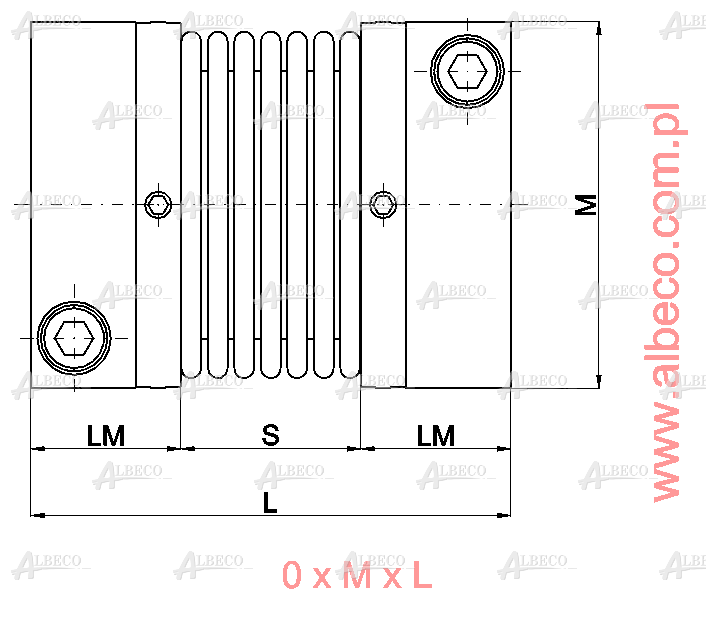

dimensions	0 x 34 x 50.5
Weight	0.105 kg
country of origin	Italy
feature	backlash free bellows coupling hub for servos with high torsional rigidity
LM [mm]	17
L [mm]	50.5
material	aluminium and stainless steel
max. angular displacement [°]	1.5
max. axial displacement [mm]	±0.5
max. radial displacement [mm]	0.2
max. velocity [rpm]	14000
M [mm]	34
product feature	servoplus

Plewiska (1)

on stock

Katowice (2)

on stock

Attributes

GSP16 SIT

Metal bellow-type coupling, backlash free, SERVOPLUS

manufacturer	SIT
dimensions	0 x 34 x 50.5
Weight	0.105 kg
feature	backlash free bellows coupling hub for servos with high torsional rigidity
L [mm]	50.5
LM [mm]	17
M [mm]	34
material	aluminium and stainless steel
max. angular displacement [°]	1.5
max. axial displacement [mm]	±0.5
max. radial displacement [mm]	0.2
max. velocity [rpm]	14000
S [mm]	16.5
type	metal bellow-type coupling, backlash free
product feature	servoplus
country of origin	Italy
