Name: DS0330-0060 ACCURIDE
Rating: 5 (4 reviews)

DS0330-0060 ACCURIDE

dimensions

35.3 x 19.1 x 600

Weight

2.293 kg

additional description

Load rating 65kg if used for 10000 cycles with 450 mm wide drawer or 45kg if used for 80000 cycles with 450 mm wide drawer

additional description

Flat mount load rating 16kg if used for 10000 cycles with 450 mm wide drawer or 11kg if used for 80000 cycles with 450 mm wide drawer

cage

stainless steel

country of origin

Germany

extension length [mm]

600

flat mount

yes

front disconnect

load/pair [kg]

lock / hold

hold in

material

stainless steel

mounting

Required side space 0.2mm to 0.5mm

Details Attributes

DS0330-0060 ACCURIDE

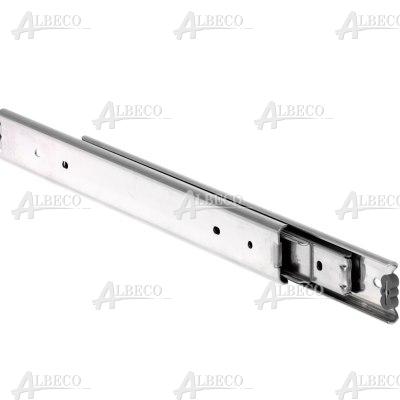

Telescopic slide, stainless steel, extension 100% (load/pair: 65kg)

Stainless Steel Full Extension Telescopic Slide 600mm DS0330-0060

Attributes

manufacturer	ACCURIDE
dimensions	35.3 x 19.1 x 600
Weight	2.293 kg
slide length [mm]	600
extension length [mm]	600
material	stainless steel
mounting	Required side space 0.2mm to 0.5mm
mounting	M4 screw (DIN 965)
flat mount	yes
load/pair [kg]	65
operating temp.	-20÷70°C
type	Telescopic slide
lock / hold	hold in
front disconnect	no
additional description	Load rating 65kg if used for 10000 cycles with 450 mm wide drawer or 45kg if used for 80000 cycles with 450 mm wide drawer
additional description	Flat mount load rating 16kg if used for 10000 cycles with 450 mm wide drawer or 11kg if used for 80000 cycles with 450 mm wide drawer
product feature	stainless steel
product feature	extension 100%
cage	stainless steel
country of origin	Germany
rolling element material	AISI 420C stainless (1.4034), ball hardness 35HRC
section [mm]	35,3x19,1

Technical materials
