You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 2517-38 SIT

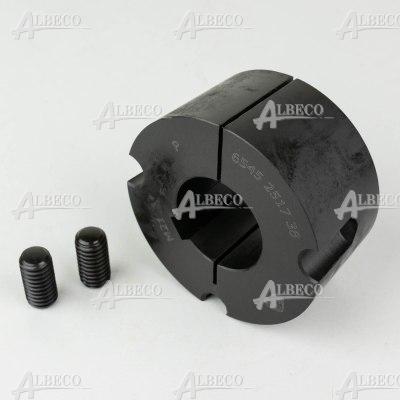

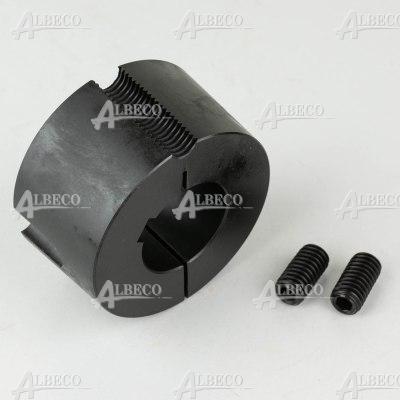

Name: TAPER LOCK 2517-38 SIT
Rating: 5 (9 reviews)

BC2517F38 SIT

dimensions	38 x 85.5 x 44.5
Weight	1.35 kg
b [mm]	10
country of origin	China
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
mounting holes number	2
screw tightening torque [Nm]	48
t2 [mm]	3.3
transmissible axial load [kN]	1700
transmissible torque moment [Nm]	1310
type	Taper-lock bush

Plewiska (15)

on stock

Attributes Substitutes (1)

TAPER LOCK 2517-38 SIT

Taper-lock bush

Attributes

manufacturer	SIT
dimensions	38 x 85.5 x 44.5
Weight	1.35 kg
b [mm]	10
feature	taper lock bush for mounting pulleys
feature	4 holes
mounting holes number	2
material	grey cast iron
screw tightening torque [Nm]	48
transmissible torque moment [Nm]	1310
transmissible axial load [kN]	1700
t2 [mm]	3.3
type	Taper-lock bush
country of origin	China
