You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 3020-28 SIT

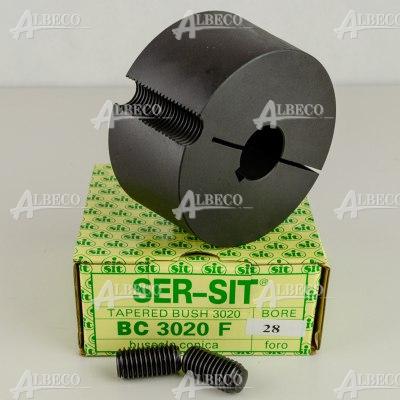

Name: TAPER LOCK 3020-28 SIT
Rating: 4.5 (8 reviews)

BC3020F28 SIT

dimensions	28 x 108 x 50.8
Weight	2.879 kg
b [mm]	8
country of origin	Italy / China
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
mounting holes number	2
screw tightening torque [Nm]	90
t2 [mm]	3.3
transmissible torque moment [Nm]	2710
type	Taper-lock bush

Plewiska (12)

on stock

Attributes Substitutes (1)

TAPER LOCK 3020-28 SIT

Taper-lock bush

Attributes

manufacturer	SIT
dimensions	28 x 108 x 50.8
Weight	2.879 kg
b [mm]	8
feature	taper lock bush for mounting pulleys
feature	4 holes
mounting holes number	2
material	grey cast iron
screw tightening torque [Nm]	90
transmissible torque moment [Nm]	2710
t2 [mm]	3.3
type	Taper-lock bush
country of origin	Italy / China
