You are here: Power transmission Couplings Clamping sleeves CAL3F40/53 SIT

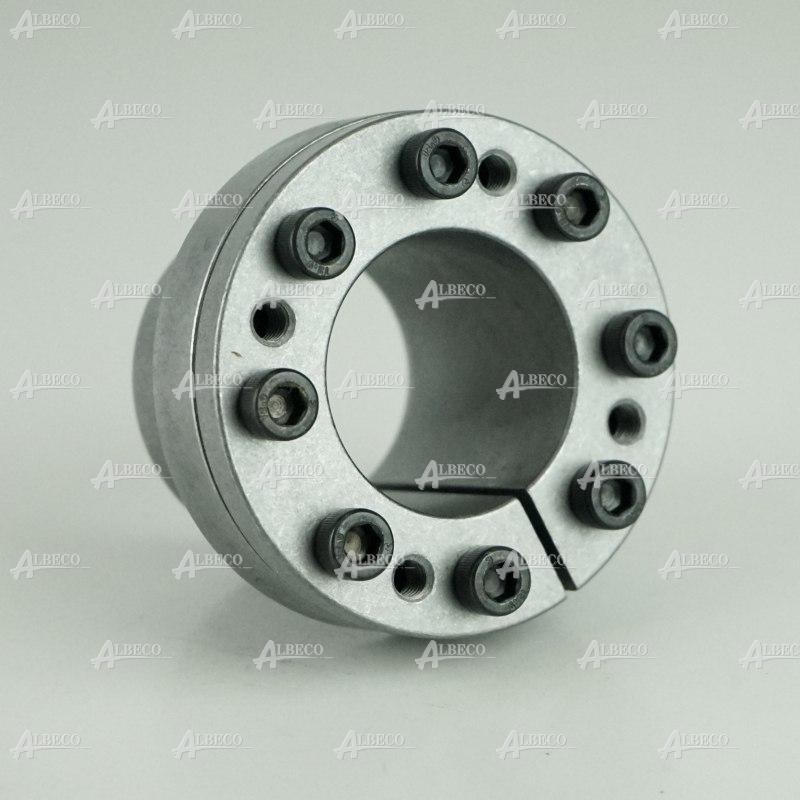

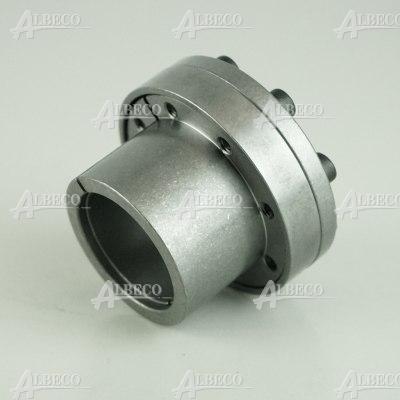

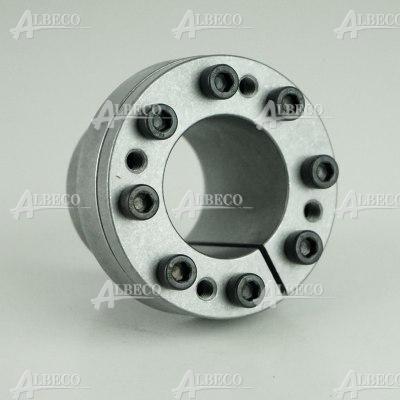

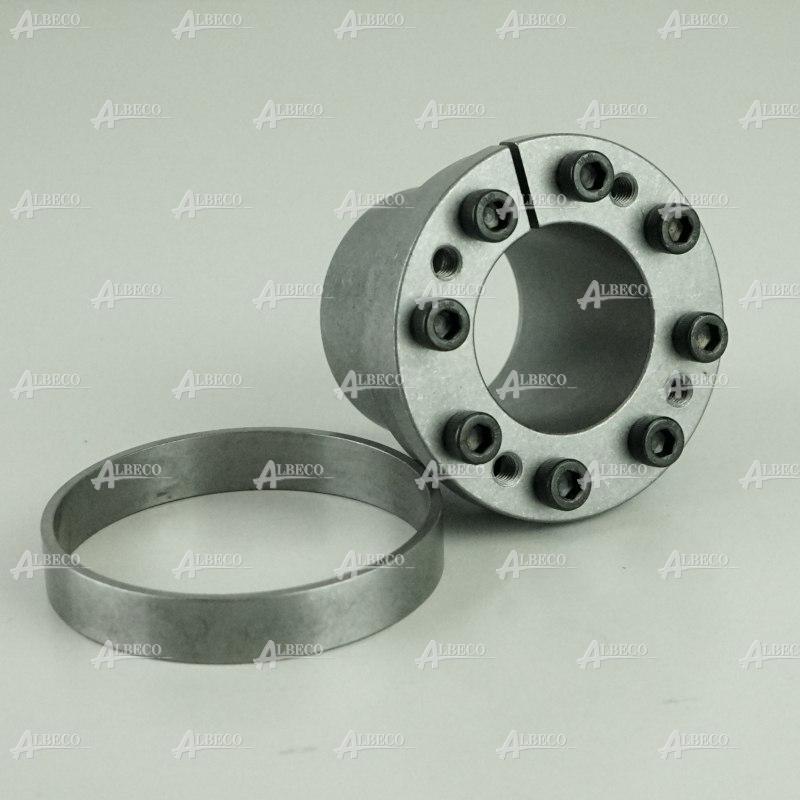

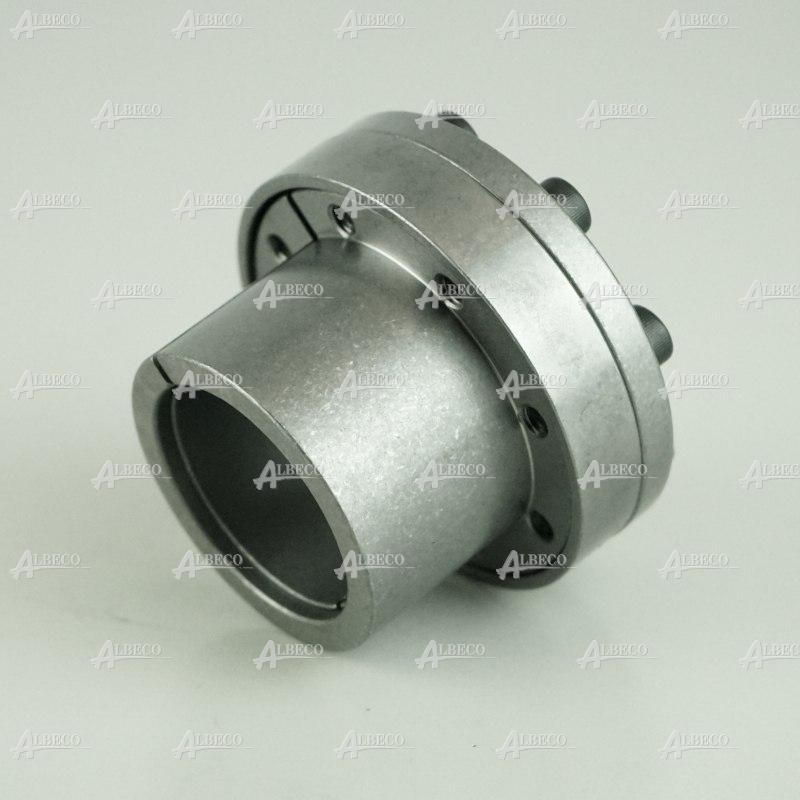

Clamping element, SIT-LOCK, self-centering

CAL3F40/53 SIT

Name: CAL3F40/53 SIT
Rating: 5 (8 reviews)

dimensions	40 x 53 x 52
Weight	0.694 kg
clamping screw	M6
country of origin	China / Italy
feature	no axial displacement when tightening the screws
H0 [mm]	45
H2 [mm]	58
H [mm]	32
material	steel
mounting holes number	8
product feature	self-centering
product feature	sit-lock
screw tightening torque [Nm]	17

Plewiska (53)

on stock

Olsztyn (4)

on stock

Attributes Substitutes (1)

CAL3F40/53 SIT

Clamping element, SIT-LOCK, self-centering

Attributes

manufacturer	SIT
dimensions	40 x 53 x 52
Weight	0.694 kg
feature	no axial displacement when tightening the screws
H [mm]	32
H0 [mm]	45
H2 [mm]	58
mounting holes number	8
material	steel
screw tightening torque [Nm]	17
transmissible torque moment [Nm]	910
transmissible axial load [kN]	45
type	clamping element
product feature	self-centering
product feature	sit-lock
country of origin	China / Italy
clamping screw	M6
