You are here: Power transmission Couplings Clamping sleeves CAL10F45/85 SIT

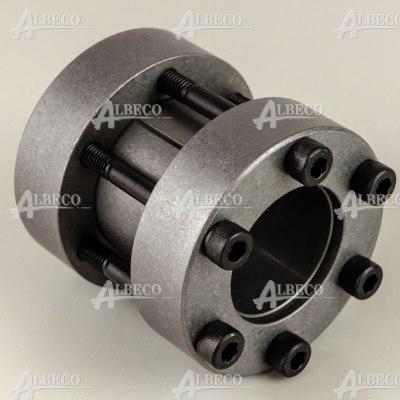

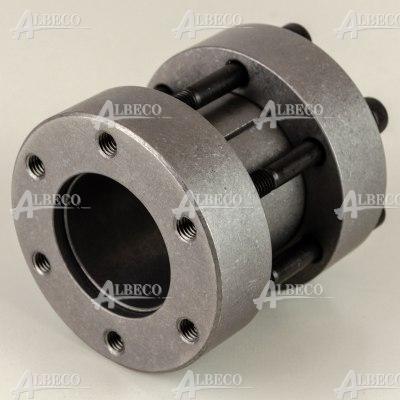

Clamping element, SIT-LOCK, not self-centering

CAL10F45/85 SIT

dimensions	45 x 85 x 85
Weight	1.923 kg
clamping screw	M8x80
country of origin	China
feature	external rigid joint
L2 [mm]	24.5
L3 [mm]	76
L [mm]	93
material	steel
mounting holes number	6
product feature	sit-lock
product feature	not self-centering
screw tightening torque [Nm]	42

Plewiska (6)

on stock

Log in to see the price

SIT

Attributes Substitutes (1)

CAL10F45/85 SIT

Clamping element, SIT-LOCK, not self-centering

Log in to see the price

manufacturer	SIT
dimensions	45 x 85 x 85
Weight	1.923 kg
feature	external rigid joint
mounting holes number	6
L [mm]	93
L2 [mm]	24.5
L3 [mm]	76
material	steel
screw tightening torque [Nm]	42
transmissible torque moment [Nm]	1317
transmissible axial load [kN]	59
type	clamping element
product feature	sit-lock
product feature	not self-centering
country of origin	China
clamping screw	M8x80
