You are here: Pneumatics and hydraulics Ball and solenoid valves QH-1/2 FESTO

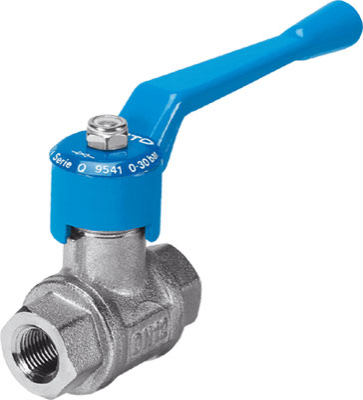

Ball valve

QH-1/2 FESTO

Name: QH-1/2 FESTO
Rating: 4.6 (10 reviews)

9543 FESTO

Weight	0.35 kg
country of origin	Italy
nominal pressure [bar]	30
type	ball valve
valve function	2/2 bistable
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda

Plewiska (2)

on stock

Details Attributes

QH-1/2 FESTO

Ball valve

Feature	Value
Valve function	2/2 bistable
Pneumatic connection, port 1	G1/2
Pneumatic connection, port 2	G1/2
Type of actuation	manual
Mounting type	Line installation
Standard nominal flow rate	11,500 l/min
Nominal size	15 mm
Ambient temperature	-20 ... 180 °C
Material housing	Brass
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water
Sealing principle	soft
Design structure	Ball valve
Nominal pressure of process valve	30
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)

Attributes

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.35 kg
type	ball valve
country of origin	Italy
valve function	2/2 bistable
nominal pressure [bar]	30
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda
