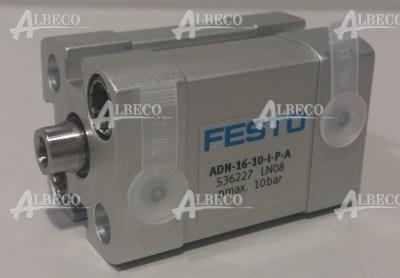

Pneumatic cylinder (norm: ISO 21287)

ADN-16-10-I-P-A FESTO

536227 FESTO
dimensions 16 x 0 x 10
Weight 0.17 kg
country of origin Germany
norm ISO 21287
piston diameter 16 mm
stroke [mm] 10
thread M4
thread M5
type pneumatic cylinder
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
working pressure [bar] 1÷10
Plewiska (5)

on stock

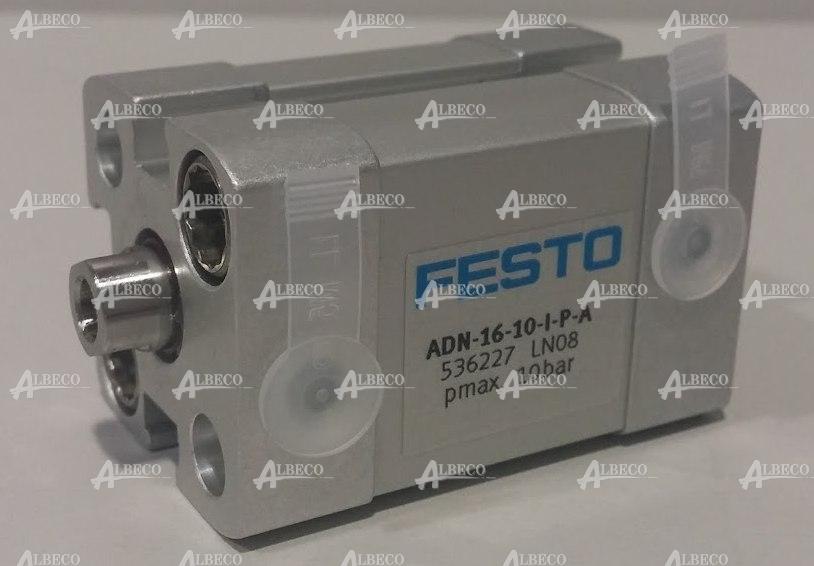

ADN-16-10-I-P-A FESTO

Pneumatic cylinder (norm: ISO 21287)

Data sheet:




Feature Value
Stroke 10 mm
Piston diameter 16 mm
Piston rod thread M4
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure MPa 0.1 ... 1 MPa
Operating pressure 1 ... 10 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 0.15 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting 90 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance 121 N
Moving mass with 0 mm stroke 15 g
Additional weight per 10 mm stroke 14 g
Basic weight for 0 mm stroke 79 g
Additional mass factor per 10 mm of stroke 4 g
Mounting type with through hole
with internal (female) thread
with accessories
Optional
Pneumatic connection M5
Materials note Conforms to RoHS
Material cover Aluminium
Anodised
Material seals TPE-U(PUR)
Material piston rod High alloy steel
Material cylinder barrel Wrought Aluminium alloy
Smooth anodised
manufacturer FESTO
dimensions 16 x 0 x 10
Weight 0.17 kg
working pressure [bar] 1÷10
thread M4
thread M5
norm ISO 21287
stroke [mm] 10
piston diameter 16 mm
type pneumatic cylinder
country of origin Germany
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
