Name: DB2132-0040 ACCURIDE
Rating: 4.9 (12 reviews)

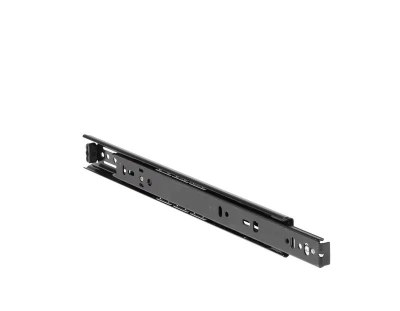

DB2132-0040 ACCURIDE

dimensions

35.3 x 12.7 x 400

Weight

0.71 kg

additional description

Load rating 50kg if used for 10000 cycles or 35kg if used for 80000 cycles

cam adjustment

colour

black

extension length [mm]

281

flat mount

front disconnect

yes

load/pair [kg]

lock / hold

hold in

material

black galvanized steel

mounting

Required side space 0.2mm to 0.5mm

mounting

M4 screw (DIN 965)

Details Attributes

DB2132-0040 ACCURIDE

Telescopic slide, zinc plated, extension 75% (load/pair: 50kg, operating temp.: -20÷70°C)

Part Extension Drawer Runner Black 400 mm DB2132-0040

Attributes

manufacturer	ACCURIDE
dimensions	35.3 x 12.7 x 400
Weight	0.71 kg
slide length [mm]	400
extension length [mm]	281
colour	black
material	black galvanized steel
mounting	Required side space 0.2mm to 0.5mm
mounting	M4 screw (DIN 965)
mounting	euro screw 6 mm
mounting	4 mm wood screw (DIN 7997)
mounting	Breathing tabs to compensate variations in cabinet or drawer width
flat mount	no
load/pair [kg]	50
operating temp.	-20÷70°C
type	telescopic slide
used with	DB63340-2 brackets
lock / hold	hold in
front disconnect	yes
additional description	Load rating 50kg if used for 10000 cycles or 35kg if used for 80000 cycles
product feature	zinc plated
product feature	extension 75%
rolling element material	hardened steel
cam adjustment	0

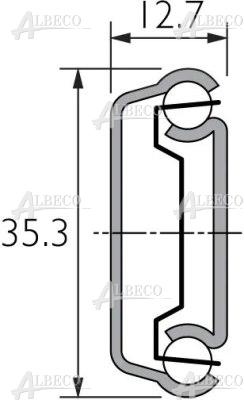

section [mm]	35,3x12,7
