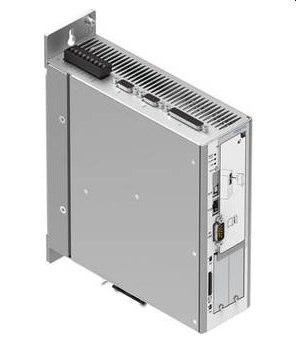

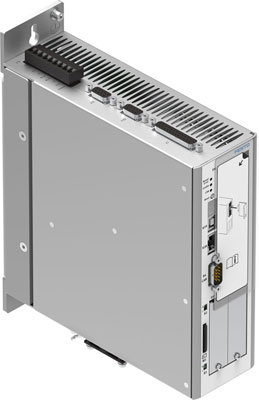

Feature |
Value |
| Mounting type |
On sub-base
Tightened |
| Product weight |
2,200 g |
| Display |
Seven-segment display |
| Authorisation |
RCM Mark
c UL us - Listed (OL) |
| CE mark (see declaration of conformity) |
to EU directive for EMC
to EU directive for machinery
to EU directive low-voltage devices |
| Storage temperature |
-25 ... 70 °C |
| Ambient temperature |
0 ... 40 °C |
| Relative air humidity |
0 - 90 % |
| Protection class |
IP10
IP20 |
| Degree of contamination |
2 |
| Materials note |
Contains PWIS substances
Conforms to RoHS |
| Nominal operating voltage, phases |
Single-phase |
| Nominal operating voltage, AC |
230 V |
| Permissible voltage fluctuation |
+/- 10 % |
| Line frequency |
50 ... 60 Hz |
| Nominal current |
4 ... 6 A |
| Mains filter |
Integrated |
| Max. intermediate circuit voltage, DC |
320 V |
| Braking resistance |
60 Ohm |
| Braking resistance pulse power |
2.8 kVA |
| Nominal DC voltage, logic power supply |
24 V |
| Permissible range, logic voltage |
± 20 % |
| Current consumption, logic power supply without clamping brake |
0.65 A |
| Output voltage range AC |
3x 0 - 270 V |
| Nominal output current |
5 A |
| Effective nominal current per phase |
5 A |
| Effective peak current per phase |
10 A |
| Max. peak current duration |
5 s |
| Nominal controller power |
1,000 VA |
| Peak power |
2,000 VA |
| Output frequency |
0 ... 1,000 Hz |
| Parameters configuring interface |
Parameters configuration and commissioning
USB
Ethernet |
| Fieldbus coupling |
CANopen
DeviceNet
EtherCAT
EtherNet/IP
Modbus/TCP
PROFINET
Profibus DP |
| Communications profile |
DS301/DSP402
FHPP |
| Process interface |
I/O coupling
For 256 position sets |
| Max. fieldbus transmission speed |
1 Mbit/s |
| Bus connection |
Plug
9-pin
Sub-D |
| Encoder interface output, characteristics |
Resolution 16384 ppr |
| Encoder interface output, function |
Actual value feedback via encoder signals in speed control mode
Setpoint specification for downstream slave drive unit |
| Encoder interface input, characteristics |
3-phase encoding signals
EnDat
HIPERFACE
RS422
SINCOS |
| Encoder interface input, function |
Encoder signal, speed setpoint in RPM
In synchronous operation as specified speed in RPM for the slave drive unit |
| Number of digital logic inputs |
10 |
| Logic input characteristics |
Electrically isolated
Freely configurable |
| Logic input working range |
8 ... 30 V |
| Number of 24 V DC digital logic outputs |
5 |
| Digital logic output characteristics |
Electrically isolated
Freely configurable to a given extent |
| Max. current, digital logic outputs |
100 mA |
| Number of analogue setpoint inputs |
2 |
| Setpoint input characteristics |
Differential inputs
Can be configured for speed in RPM
Can be configured for current |
| Setpoint input working range |
± 10 V |
| Setpoint input impedance |
20 kOhm |
| Number of analogue monitor outputs |
2 |
| Monitor output working range |
± 10 V |
| Monitor output resolution |
9 Bit |
| Monitor output characteristics |
Short-circuit proof |
