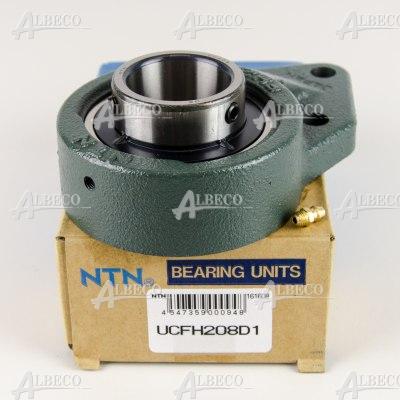

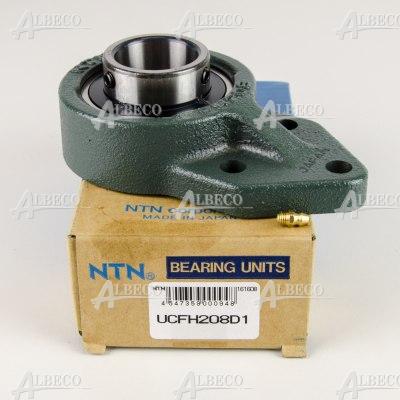

UCFH208D1 NTN
Cast iron bearing unit
manufacturer | NTN |
dimensions | 40 x 0 x 0 |
Weight | 1.83 kg |
A [mm] | 36 |
d [mm] | 40 |
H [mm] | 60 |
H1 [mm] | 41 |
L [mm] | 100 |
L2 [mm] | 50 |
clearence | CN - normal clearance |
N [mm] | 12 |
type | cast iron bearing unit |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
A1 [mm] | 16 |
J [mm] | 50 |
F2 [mm] | 164 |
cage | steel |
country of origin | Japan |
