Data sheet:

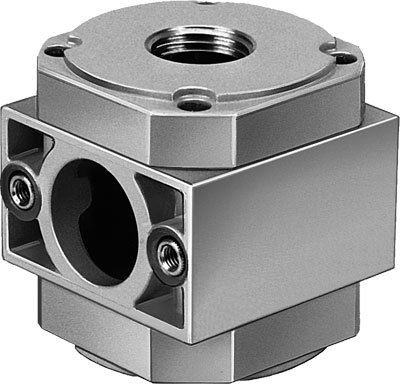

Name: FRM-D-MIDI FESTO
Rating: 4.7 (7 reviews)

Feature	Value
Assembly position	Any
Design structure	Branching module
Operating pressure	0 ... 16 bar
Standard nominal flow rate in main flow direction 1->2	8,200 l/min
Maritime classification	see certificate
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Inert gases
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Storage temperature	-10 ... 60 °C
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Inert gases
Medium temperature	-10 ... 60 °C
Ambient temperature	-10 ... 60 °C
Product weight	382 g
Pneumatic connection, port 3	G1/2
Pneumatic connection, port 4	G1/4
Materials note	Free of copper and PTFE Conforms to RoHS
Material housing	Aluminium die cast

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.29 kg
working pressure [bar]	0÷16
type	branching module
country of origin	Hungary
working medium	Gazy obojętne, sprężone powietrze wg ISO8573-1:2010 [7:-:-]
