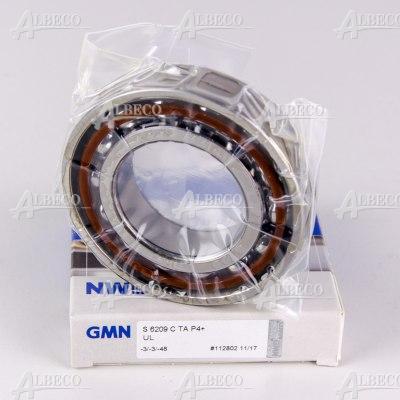

Name: S6209 C TA P4+ UL GMN
Rating: 4.8 (4 reviews)

S6209 C TA P4+ UL GMN

dimensions

45 x 85 x 19

Weight

0.423 kg

bearing arrangement

for universal matching

cage

textolite, outer ring centred

contact angle [°]

Dw - rolling element diameter [mm]

12.7

Dynamic load rating [N]

45500

limiting/attainable speed, grease [rpm]

19500

limiting/attainable speed, oil [rpm]

26000

precision

better than P4

preload

light preload

product feature

high precision bearing

rings material

steel

Attributes Substitutes (11)

S6209 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

Attributes

manufacturer	GMN
dimensions	45 x 85 x 19
Weight	0.423 kg
type	single row angular-contact ball bearing
product feature	high precision bearing
Dynamic load rating [N]	45500
static load rating [N]	34000
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
Dw - rolling element diameter [mm]	12.7
limiting/attainable speed, oil [rpm]	26000
limiting/attainable speed, grease [rpm]	19500
rolling element material	big steel balls
rings material	steel

Technical materials

leaflet

Product's substitutes

7209 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

45 x 85 x 19

7209 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

in stock

Plewiska: 2 pcs

7209CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

in stock

2 weeks: 22 pcs

7209CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

in stock

2 weeks: 10 pcs

7209X2TAUEP7 RHP-NSK

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

7209CTRDULP3 NSK

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

45 x 85 x 19

in stock

Plewiska: 15 pair

B7209-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

45 x 85 x 19

B7209-C-T-P4S-K5-UL FAG

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

B7209-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

in stock

Plewiska: 4 pcs

B7209-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

45 x 85 x 19

in stock

Plewiska: 10 pcs

Olsztyn: 2 pcs

S6209 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

45 x 85 x 19

in stock

Plewiska: 2 pair
