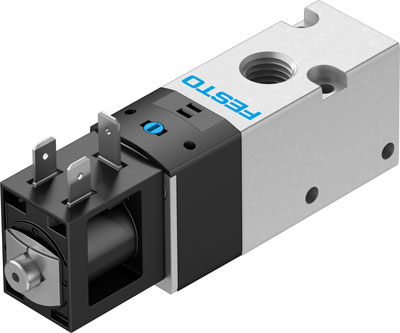

VUVS-LK25-M32C-AD-G14-1B2-S FESTO

8043217 FESTO

Weight

0.2 kg

country of origin

China

direction of flow

non-reversible

duty cycle

100 %

pilot air supply

internal

type

solenoid valve

valve function

3/2-way, closed, single solenoid

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

1,5÷8

Details Attributes

VUVS-LK25-M32C-AD-G14-1B2-S FESTO

Solenoid valve

Data sheet:

Name: VUVS-LK25-M32C-AD-G14-1B2-S FESTO
Rating: 4.6 (9 reviews)

Feature	Value
Valve function	3/2 closed, monostable
Type of actuation	electrical
Valve size	26.5 mm
Standard nominal flow rate	1,000 l/min
Operating pressure	1.5 ... 8 bar
Design structure	Piston slide
Type of reset	Air spring
Protection class	IP65 with plug socket to IEC 60529
Nominal size	6.7 mm
Exhaust-air function	throttleable
Sealing principle	soft
Assembly position	Any
Manual override	detenting Pushing
Type of piloting	Piloted
Pilot air supply	Internal
Flow direction	non reversible
Overlap	Positive overlap
b value	0.45
C value	3.86 l/sbar
Switching time off	20 ms
Switching time on	16 ms
Duty cycle	100 %
Max. positive test pulse with logic 0	2,500 µs
Max. negative test pulse with logic 1	1,100 µs
Characteristic coil data	24 V DC: 3.3 W
Permissible voltage fluctuation	+/- 10 %
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Vibration resistance	Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 1 in accordance with FN 942017-5 and EN 60068-2-27
Corrosion resistance classification CRC	1 - Low corrosion stress
Medium temperature	-5 ... 50 °C
Pilot medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Ambient temperature	-5 ... 50 °C
Product weight	200 g
Electrical connection	Plug pattern type B to EN 175301-803
Mounting type	on manifold rail with through hole Optional
Scavenging orifice connection	Non-ducted
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Pneumatic connection, port 3	G1/4
Materials note	Contains PWIS substances Conforms to RoHS
Material seals	HNBR NBR
Material housing	Wrought Aluminium alloy
Material Piston slide	Wrought Aluminium alloy

Attributes

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.2 kg
working pressure [bar]	1,5÷8
type	solenoid valve
country of origin	China
valve function	3/2-way, closed, single solenoid
direction of flow	non-reversible
pilot air supply	internal
duty cycle	100 %
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
