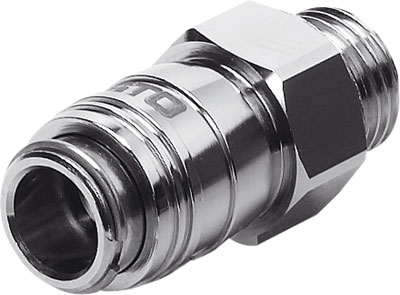

Quick release couplers and plugs

KD3-1/8-A FESTO

Name: KD3-1/8-A FESTO
Rating: 4.6 (11 reviews)

2142 FESTO

Weight	0.028 kg
country of origin
type	quick release couplers and plugs
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-]

Details Attributes

KD3-1/8-A FESTO

Quick release couplers and plugs

Feature	Value
Nominal size	4.95 mm
Operating pressure complete temperature range	-0.95 ... 12 bar
Standard nominal flow rate	563 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 - Low corrosion stress
Ambient temperature	-10 ... 60 °C
Nominal tightening torque	5 Nm
Tolerance for nominal tightening torque	± 15 %
Product weight	28 g
Pneumatic connection, port 1	Male thread G1/8
Materials note	Conforms to RoHS

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.028 kg
type	quick release couplers and plugs
country of origin
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-]
