Name: CGR25R /1850H, 25-25-CSS HIWIN
Rating: 5 (5 reviews)

CGR25R /1850H, 25-25-CSS HIWIN

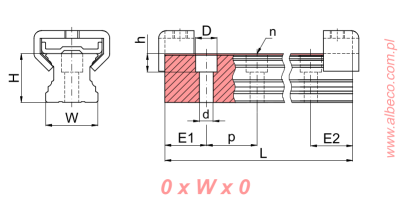

dimensions

0 x 23 x 0

Weight

5.698 kg

d [mm]

7.0

D [mm]

H [mm]

24.3

h [mm]

material

stal hartowana powierzchniowo / taśma: stal sprężynowa odporna na korozję

number of raceways

operating temp.

-10÷80°C

p - pitch [mm]

60.0

precision

high accuracy

rail size

screw (min. lenght)

ISO14580, M6x20-10.9

Attributes Variants (2) Works with

CGR25R /1850H, 25-25-CSS HIWIN

Rail with cover strip (operating temp.: -10÷80°C)

Attributes

manufacturer	HIWIN
dimensions	0 x 23 x 0
Weight	5.698 kg
d [mm]	7.0
D [mm]	11
h [mm]	9
H [mm]	24.3
number of raceways	4
material	stal hartowana powierzchniowo / taśma: stal sprężynowa odporna na korozję
p - pitch [mm]	60.0
rail size	25
screw (min. lenght)	ISO14580, M6x20-10.9
operating temp.	-10÷80°C
surface hardness	58+4HRC
type	rail with cover strip
W [mm]	23
used with	CGH…CA, CGH…HA, CGW…CC, CGW…HC
precision	high accuracy

Technical materials

Variants

CGR25R /0900H, 30-30-CSS HIWIN

Rail with cover strip (operating temp.: -10÷80°C)

0 x 23 x 0

Plewiska: 2 pcs

CGR25R /1600H, 20-20-CSS HIWIN

Rail with cover strip (operating temp.: -10÷80°C)

0 x 23 x 0

Plewiska: 1 pcs
