You are here: Pneumatics and hydraulics Connectors and adapters PUN-8X1,25-S-6-BL FESTO

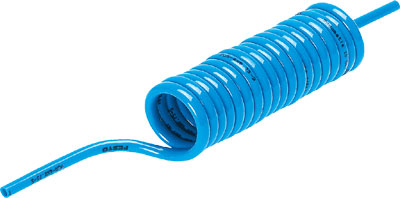

Plastic tubing

PUN-8X1,25-S-6-BL FESTO

Name: PUN-8X1,25-S-6-BL FESTO
Rating: 4.8 (5 reviews)

197595 FESTO

Details Attributes

PUN-8X1,25-S-6-BL FESTO

Plastic tubing

Feature	Value
Working length	6 m
Outside diameter	8 mm
Block length	0.904 m
Inside diameter	5.7 mm
Coil diameter	60 mm
Number of windings	87
Temperature dependent operating pressure	-0.95 ... 10 bar
Authorisation	TÜV
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Ambient temperature	-35 ... 60 °C
Product weight	440 g
Pneumatic connection	For push-in connector outside diameter 8 mm for barbed connector internal diameter 6 mm with nut for barbed connector internal diameter 6 mm
Colour	blue
Shore hardness	D 52 +/-3
Materials note	Free of copper and PTFE
Material tubing	TPE-U(PU)
