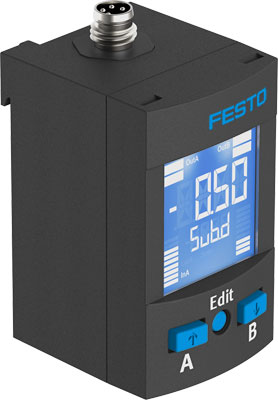

Feature |
Value |
| Authorisation |
RCM Mark
c UL us - Listed (OL) |
| CE mark (see declaration of conformity) |
to EU directive for EMC
in accordance with EU RoHS directive |
| KC mark |
KC-EMV |
| Materials note |
Conforms to RoHS |
| Measured variable |
Relative pressure |
| Measurement method |
Piezoresistive pressure sensor |
| Pressure measuring range, initial value |
0 bar |
| Pressure measuring range, final value |
-1 bar |
| Overload range |
5 bar |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible |
| Medium temperature |
0 ... 50 °C |
| Ambient temperature |
0 ... 50 °C |
| Resolution of analogue/digital converter |
12 Bit |
| Accuracy, FS |
1.5 %FS |
| Repetition accuracy in ± %FS |
0.3 %FS |
| Temperature co-efficient in ± %FS/K |
0.05 %FS/K |
| Switch output |
2 x PNP or 2 x NPN switchable |
| Switching function |
Freely programmable |
| Switching element function |
N/C or N/O contact, switchable |
| Max. output current |
100 mA |
| Analogue output |
0 - 10 V
4 - 20 mA
1 - 5 V |
| Rise time |
3 ms |
| Max. load resistance, current output |
500 Ohm |
| Min. load resistance, voltage output |
10 kOhm |
| Short circuit strength |
Yes |
| Protocol |
IO-Link |
| IO-Link, protocol |
Device V 1.1 |
| IO-Link, profile |
Smart sensor profile |
| IO-Link, function classes |
Binary Data Channels (BDC)
Process Data Variable (PDV)
Identification
diagnosis
Teach channel |
| IO-Link, communication mode |
COM2 (38,4 kBaud) |
| IO-Link, SIO mode support |
Yes |
| IO-Link, port type |
A |
| IO-Link, process data width OUT |
0 Byte |
| IO-Link, process data width IN |
2 Byte |
| IO-Link, process data content IN |
14 bit PDV (pressure reading)
2 bit BDC (pressure monitoring) |
| IO-Link, minimum cycle time |
3 ms |
| IO-Link, data memory required |
0.5 Kilobyte |
| Operating voltage range DC |
20 ... 30 V |
| Polarity protected |
for all electrical connections |
| Electrical connection 1, connection type |
Plug |
| Electrical connection 1, connection technology |
M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires |
4 |
| Mounting type |
with top-hat rail |
| Assembly position |
Any |
| Pneumatic connection |
G1/8 |
| Product weight |
70 g |
| Type of display |
illuminated LCD |
| Unit(s) that can be displayed |
MPa
bar
inchH2O
inchHg
kPa
kgf/cm²
mmHg
psi |
| Setting options |
IO-Link
Teach-In
Via display and buttons |
| Protection against manipulation |
IO-Link
PIN-Code |
| Threshold value setting range |
0 ... 100 % |
| Hysteresis setting range |
0 ... 90 % |
| Protection class |
IP65
IP67 |
| Corrosion resistance classification CRC |
2 - Moderate corrosion stress |
