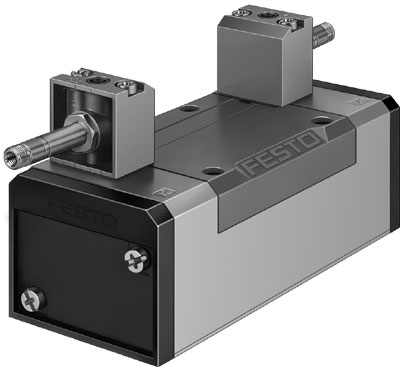

Feature |
Value |
| Valve function |
5/2 bistable |
| Type of actuation |
electrical |
| Width |
65 mm |
| Standard nominal flow rate |
4,500 l/min |
| Operating pressure |
-0.9 ... 16 bar |
| Design structure |
Piston slide |
| Maritime classification |
see certificate |
| Protection class |
IP65 |
| Nominal size |
14.5 mm |
| Grid dimension |
71 mm |
| Exhaust-air function |
throttleable |
| Sealing principle |
soft |
| Assembly position |
Any |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
with accessories, detenting
Pushing |
| ISO code |
369 |
| Type of piloting |
Piloted |
| Pilot air supply |
external |
| Flow direction |
reversible |
| Overlap |
Positive overlap |
| Pilot pressure |
2 ... 10 bar |
| Switching time reversal |
18 ms |
| Max. positive test pulse with logic 0 |
2,200 µs |
| Max. negative test pulse with logic 1 |
3,700 µs |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (subsequently required for further operation) |
| Vibration resistance |
Transport application test at severity level 1 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Medium temperature |
-10 ... 60 °C |
| Sound pressure level |
85 dB(A) |
| Pilot medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature |
-5 ... 40 °C |
| Product weight |
1,060 g |
| Electrical connection |
Via F coil, must be ordered separately |
| Mounting type |
On sub-base
With through-hole and screw |
| Pilot exhaust port 82 |
M5 |
| Pilot exhaust port 84 |
M5 |
| Pilot air port 12 |
Connection plate size 3 as per ISO 5599-1 |
| Pilot air port 14 |
Connection plate size 3 as per ISO 5599-1 |
| Pneumatic connection, port 1 |
Connection plate size 3 as per ISO 5599-1 |
| Pneumatic connection, port 2 |
Connection plate size 3 as per ISO 5599-1 |
| Pneumatic connection, port 3 |
Connection plate size 3 as per ISO 5599-1 |
| Pneumatic connection, port 4 |
Connection plate size 3 as per ISO 5599-1 |
| Pneumatic connection, port 5 |
Connection plate size 3 as per ISO 5599-1 |
| Materials note |
Conforms to RoHS |
| Material seals |
HNBR
NBR |
| Material housing |
Aluminium die cast |
