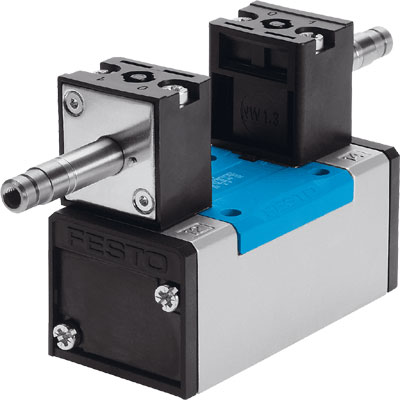

Feature |
Value |
| Valve function |
5/2 bistable |
| Type of actuation |
electrical |
| Width |
42 mm |
| Standard nominal flow rate |
1,200 l/min |
| Operating pressure |
2 ... 10 bar |
| Design structure |
Piston slide |
| Authorisation |
c UL us - Recognized (OL) |
| Maritime classification |
see certificate |
| Protection class |
IP65 |
| Nominal size |
8 mm |
| Grid dimension |
43 mm |
| Exhaust-air function |
throttleable |
| Sealing principle |
soft |
| Assembly position |
Any |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
with accessories, detenting
Pushing |
| ISO code |
155 |
| Type of piloting |
Piloted |
| Pilot air supply |
Internal |
| Flow direction |
non reversible |
| Overlap |
Positive overlap |
| Switching time reversal |
18 ms |
| Max. positive test pulse with logic 0 |
3,700 µs |
| Max. negative test pulse with logic 1 |
4,600 µs |
| Characteristic coil data |
See solenoid coil, to be ordered separately |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (subsequently required for further operation) |
| Vibration resistance |
Transport application test at severity level 1 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Medium temperature |
-5 ... 50 °C |
| Sound pressure level |
85 dB(A) |
| Pilot medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature |
-5 ... 50 °C |
| Product weight |
610 g |
| Electrical connection |
Via N1 coil, to be ordered separately |
| Mounting type |
On sub-base
with through hole |
| Pilot air port 12 |
Connection plate size 1 as per ISO 5599-1 |
| Pilot air port 14 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 1 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 2 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 3 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 4 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 5 |
Connection plate size 1 as per ISO 5599-1 |
| Materials note |
Conforms to RoHS |
| Material seals |
HNBR
NBR |
| Material housing |
Aluminium die cast |
