Data sheet:

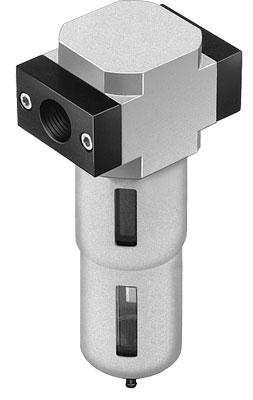

Name: LF-1/8-D-MINI FESTO
Rating: 5 (14 reviews)

Feature	Value
Size	Mini
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	22 cm3
Bowl guard	Metal bowl guard
Operating pressure	0 ... 16 bar
Standard nominal flow rate	1,000 l/min
Maritime classification	see certificate
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Storage temperature	-10 ... 60 °C
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [7:8:4] Inert gases
Medium temperature	-10 ... 60 °C
Ambient temperature	-10 ... 60 °C
Product weight	250 g
Mounting type	Line installation with accessories
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 2	G1/8
Materials note	Conforms to RoHS
Material filter	PE
Material housing	Zinc die-casting
Material bowl	PC

Attributes

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.41 kg
working pressure [bar]	0÷16
type	air filter
country of origin	Hungary
filtrowanie [μm]	40
working medium	Gazy obojętne, sprężone powietrze wg ISO 8573-1:2010 [-:9:-]
condensate drain	manually rotating
