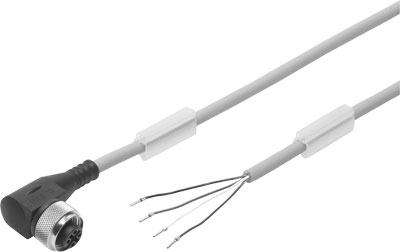

Feature |
Value |
| Conforms to standard |
Core colours and connection numbers to EN 60947-5-2
EN 61076-2-101 |
| Cable identification |
with 2x label holders |
| Product weight |
144 g |
| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Round |
| Electrical connection 1, connection type |
Plug socket |
| Electrical connection 1, cable outlet |
Angled |
| Electrical connection 1, connection technology |
M12x1, A-coded in accordance with EN 61076-2-101 |
| Electrical connection 1, number of pins/wires |
5 |
| Electrical connection 1, occupied pins/wires |
4 |
| Electrical connection 1, type of mounting |
Screw lock |
| Electrical connection 2, function |
Controller side |
| Electrical connection 2, connection type |
Cable |
| Electrical connection 2, connection technology |
Open end |
| Electrical connection 2, number of pins/wires |
4 |
| Electrical connection 2, occupied pins/wires |
4 |
| Operating voltage range DC |
0 ... 250 V |
| Operating voltage range AC |
0 ... 250 V |
| Acceptable current load at 40°C |
4 A |
| Surge strength |
2.5 kV |
| Cable length |
5 m |
| Cable attribute |
Standard |
| Test conditions of cable |
Bending strength according to Festo standard
Test conditions on request
Chain link trunking: 5 million cycles, bending radius 75 mm |
| Bending radius, fixed cable installation |
14 mm |
| Bending radius, flexible cable installation |
46 mm |
| Cable diameter |
4.5 mm |
| Cable diameter tolerance |
± 0,1 mm |
| Cable structure |
4x0,25 |
| Nominal conductor cross-section |
0.25 mm2 |
| Protection class |
IP65
IP68
IP69K |
| Note on degree of protection |
in assembled condition |
| Special characteristics |
Oil resistant |
| Ambient temperature |
-25 ... 70 °C |
| Ambient temperature with flexible cable installation |
-5 ... 70 °C |
| CE mark (see declaration of conformity) |
to EU directive low-voltage devices
in accordance with EU RoHS directive |
| Materials note |
Free of copper and PTFE
Conforms to RoHS
Halogen-free
Free of phosphoric acid ester |
| Degree of contamination |
3 |
| Corrosion resistance classification CRC |
2 - Moderate corrosion stress |
| Material cable sheath |
TPE-U(PUR) |
| Cable sheath colour |
Grey |
| Material housing |
TPE-U(PUR) |
| Housing colour |
Black |
| Material screw-type lock |
Nickel-plated brass |
| Material seals |
NBR |
| Material electrical contact |
Gold-plated copper alloy |
| Material insulation |
PP |
