You are here: Pneumatics and hydraulics Pneumatic accessories MA-23-6-R1/8 FESTO

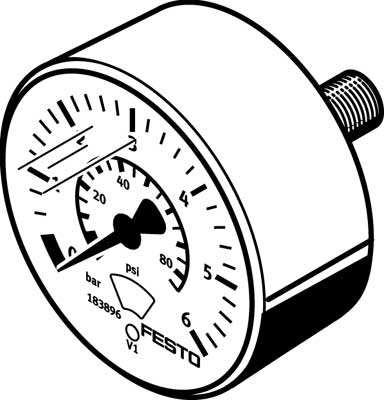

Manometer

MA-23-6-R1/8 FESTO

Name: MA-23-6-R1/8 FESTO
Rating: 4.7 (6 reviews)

183896 FESTO 183896 FESTO

Weight	0.034 kg
thread	R 1/8
type	manometer
working medium	Gazy obojętne, ciecze obojętne
working pressure [bar]	0÷6

Details Attributes

MA-23-6-R1/8 FESTO

Manometer

Feature	Value
Indicating range [bar]	0 ... 6 bar
Nominal size of pressure gauge	23
Design structure	Bourdon-tube pressure gauge
Mounting type	Line installation
Operating medium	Inert gases Neutral fluids
Operating pressure	0 ... 6 bar
Alternating load factor	0.6
Measurement accuracy class	4
Protection class	IP44
Medium temperature	-20 ... 60 °C
Ambient temperature	-20 ... 60 °C
Materials note	Conforms to RoHS
Position of connection	Rear side central
Pneumatic connection	R1/8
Materials in contact with media	Brass
Material of threaded plug	Brass
Material housing	Brass
Material screen	PC
Housing colour	Black
Product weight	27 g
Note on operating and pilot medium	No acetylene No oxygen
