Data sheet:

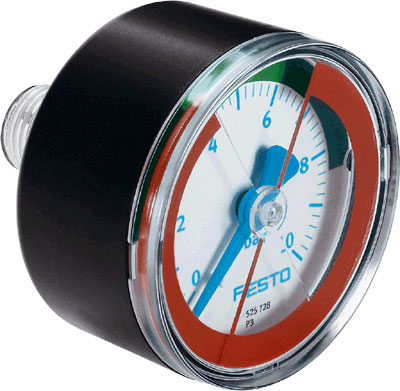

Name: MA-50-10-R1/4-E-RG FESTO
Rating: 4.8 (13 reviews)

Feature	Value
Indicating range [bar]	0 ... 10 bar
Conforms to standard	EN 837-1
Nominal size of pressure gauge	50
Design structure	Bourdon-tube pressure gauge
Mounting type	Line installation
Operating medium	Inert gases Neutral fluids
Operating pressure	0 ... 10 bar
Alternating load factor	0.66
Measurement accuracy class	2,5
Protection class	IP43
Medium temperature	-20 ... 60 °C
Ambient temperature	-20 ... 60 °C
Materials note	Conforms to RoHS
Position of connection	Rear side central
Pneumatic connection	R1/4
Materials in contact with media	Brass
Material of threaded plug	Brass
Material housing	ABS
Material screen	PMMA
Housing colour	Black
Product weight	75 g
Note on operating and pilot medium	No acetylene No oxygen

Attributes

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.12 kg
working pressure [bar]	0÷10
thread	R 1/4
norm	EN 837-1
type	manometer
country of origin	Poland
working medium	Gazy obojętne, ciecze obojętne
