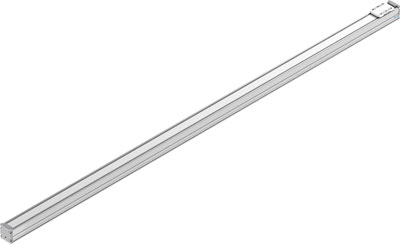

ELFC-KF-45-1500 FESTO
Driven linear unit
Feature | Value |
---|---|
Working stroke | 1,500 mm |
Size | 45 |
Stroke reserve | 0 mm |
Assembly position | Any |
Guide | Recirculating ball bearing guide |
Design structure | Guide |
Max. acceleration | 250 m/s2 |
Max. speed | 1.5 m/s |
Duty cycle | 100 % |
Corrosion resistance classification CRC | 0 - No corrosion stress |
Protection class | IP40 |
Ambient temperature | 0 ... 50 °C |
Area moment of inertia 2nd degree Iy | 140 * 1003 mm4 |
Area moment of inertia 2nd degree Iz | 170 * 1003 mm4 |
Max. force Fy | 300 N |
Max. force Fz | 600 N |
Max. torque Mx | 5.5 Nm |
Max. torque My | 4.7 Nm |
Max. torque Mz | 4.7 Nm |
Torsional mass moment of inertia It | 8.5 * 1003 mm4 |
Displacement force | 4.5 N |
Fy with theoretical service life of 100 km (from a guide perspective only) | 1,104 N |
Fz with theoretical service life of 100 km (from a guide perspective only) | 2,208 N |
Mx with theoretical service life of 100 km (from a guide perspective only | 20 Nm |
My with theoretical service life of 100 km (from a guide perspective only) | 17 Nm |
Mz with theoretical service life of 100 km (from a guide perspective only) | 17 Nm |
Moving mass | 144 g |
Additional weight per 10 mm stroke | 23 g |
Material of end caps | Die-cast aluminium, painted |
Material of profile | Anodised wrought aluminium alloy |
Materials note | Contains PWIS substances Conforms to RoHS |
Material cover tape | High alloy steel, non-corrosive |
Material cover | Die-cast aluminium, painted |
Material guide slide | Steel |
Material guide rail | Steel |
Material slide | Aluminium die cast |
manufacturer | FESTO |
dimensions | 45 x 0 x 1500 |
Weight | 0 kg |
stroke [mm] | 1500 |
piston diameter | 45 mm |
type | driven linear unit |
max. velocity [m/s] | 1.5 |
acceleration [m/s2] | 250 |
duty cycle | 100 % |
