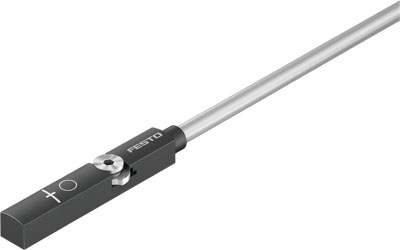

Feature |
Value |
| Design |
for T-slot |
| Authorisation |
RCM Mark
c UL us - Listed (OL) |
| CE mark (see declaration of conformity) |
to EU directive for EMC |
| KC mark |
KC-EMV |
| Certificate issuing department |
UL E232949 |
| Materials note |
Conforms to RoHS
Halogen-free |
| Measured variable |
Position |
| Measuring principle |
Hall magnetic |
| Sensing range |
<= 52,000 µm |
| Ambient temperature |
-40 ... 80 °C |
| Typical scanning interval |
2 ms |
| Max. travel speed |
3 m/s |
| Travel resolution |
<= 0.02 mm |
| Repetition accuracy |
0.2 mm |
| Switch output |
2x PNP or 2x NPN, adjustable |
| Switching element function |
N/C or N/O contact, switchable |
| Switch-on time |
< 4 ms |
| Switch-off time |
< 4 ms |
| Max. switching frequency |
125 Hz |
| Max. switching output voltage DC |
30 V |
| Max. output current |
50 mA |
| Max. contact rating DC |
1.5 W |
| Voltage drop |
< 0.5 V |
| Typical linearity error in ± mm |
±1 mm |
| Short circuit strength |
Yes |
| Overload withstand capability |
Available |
| Protocol |
I-Port
IO-Link |
| IO-Link, protocol |
Device V 1.1 |
| IO-Link, profile |
Smart sensor profile |
| IO-Link, function classes |
Process Data Variable (PDV)
Identification
diagnosis
Teach channel
Switching signal channel (SSC) |
| IO-Link, communication mode |
COM2 (38,4 kBaud) |
| IO-Link, SIO mode support |
Yes |
| IO-Link, port type |
A |
| IO-Link, process data width IN |
2 Byte |
| IO-Link, process data content IN |
12 bit PDV (position measured value)
4 bit SSC (switching signal) |
| IO-Link, minimum cycle time |
2,5 ms |
| Operating voltage range DC |
10 ... 30 V |
| Residual ripple |
10 % |
| Polarity protected |
for all electrical connections |
| Electrical connection 1, connection type |
Cable |
| Electrical connection 1, connection technology |
Open end |
| Electrical connection 1, number of pins/wires |
4 |
| Connector exit direction |
axial |
| Test conditions of cable |
Bending strength according to Festo standard
Chain link trunking: 5 million cycles, bending radius 28 mm
Torsion resistance: > 300,000 cycles, ±270°/0.1 m |
| Cable length |
2.5 m |
| Cable attribute |
Energy chain + robot |
| Cable sheath colour |
Grey |
| Material cable sheath |
TPE-U(PUR) |
| Mounting type |
Tightened
Insertable in slot from above |
| Assembly position |
Any |
| Product weight |
27 g |
| Material housing |
PA-reinforced
High alloy steel, non-corrosive |
| Operating status display |
Yellow LED |
| Status display |
Red LED |
| Setting options |
IO-Link
Capacitive pushbutton |
| Ambient temperature with flexible cable installation |
-20 ... 70 °C |
| Protection class |
IP65
IP68 |
