Data sheet:

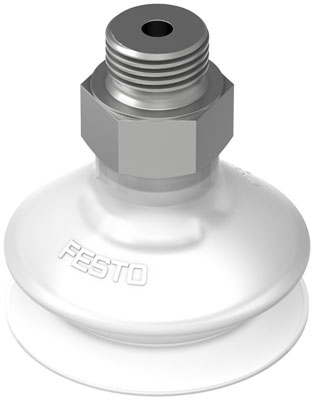

Name: VASB-40-1/4-SI-B FESTO
Rating: 4.6 (1 reviews)

Feature	Value
Suction cup height compensator	13.7 mm
Nominal size	4 mm
suction cup diameter	40 mm
suction cup volume	11.11 cm3
Position of connection	on top
Assembly position	Any
Suction cup shape	Round, bellows 1.5 conv
Operating pressure	-0.95 ... 0 bar
Nominal operating pressure	-0.7 bar
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Food-safe	See Supplementary material information
Ambient temperature	-40 ... 200 °C
Retention force at nominal operating pressure	58 N
Product weight	18 g
Mounting type	Via vacuum port
Vacuum connection	G1/4
Colour	transparent
Shore hardness	60 +/- 5
Material of threaded plug	Wrought Aluminium alloy
Materials note	Contains PWIS substances Conforms to RoHS
Material suction cup	VMQ (silicon)

Attributes

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.02 kg
working pressure [bar]	-0,95÷0
colour	transparent
material	VMQ (Silikon)
hardness	60 +/- 5 ShA
type	sucker
country of origin	Germany
height compensator for suction cup [mm]	13.7
working medium	Powietrze atmosferyczne w oparciu o ISO 8573-1:2010 [7:-:-]
