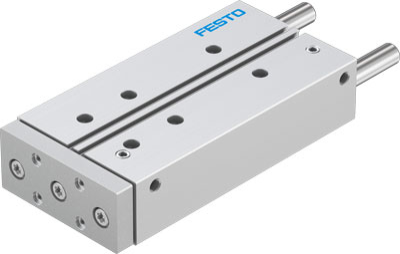

DFM-32-160-P-A-KF FESTO

170937 FESTO 170937 FESTO

dimensions

32 x 0 x 160

Weight

3.673 kg

max. velocity [m/s]

0.8

piston diameter

32 mm

static moment rating about X axis [Nm]

49.14

static moment rating about Y axis [Nm]

44.73

static moment rating about Z axis [Nm]

44.73

stroke [mm]

160

thread

G 1/8

type

pneumatic cylinder

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

1,5÷10

Details Attributes

DFM-32-160-P-A-KF FESTO

Pneumatic cylinder

Data sheet:

Name: DFM-32-160-P-A-KF FESTO
Rating: 4.5 (14 reviews)

Feature	Value
Centre of gravity distance from working load to yoke plate	50 mm
Stroke	160 mm
Piston diameter	32 mm
Operating mode of drive unit	Yoke
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Guide	Recirculating ball bearing guide
Design structure	Guide
Position detection	For proximity sensor
Operating pressure MPa	0.15 ... 1 MPa
Operating pressure	1.5 ... 10 bar
Max. speed	0.8 m/s
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	0 - No corrosion stress
Ambient temperature	-5 ... 60 °C
Impact energy in end positions	0.4 Nm
Max. force Fy	1,130 N
Max. force Fy static	1,260 N
Max. force Fz	1,130 N
Max. force Fz static	1,260 N
Max. torque Mx	44.09 Nm
Max. torque Mx static	49.14 Nm
Max. torque My	40.13 Nm
Max. torque My static	44.73 Nm
Max. torque Mz	40.13 Nm
Max. torque Mz static	44.73 Nm
Max. permissible torque load Mx as a function of the stroke	6.64 Nm
Max. useful load as a function of the stroke at defined distance xs	143 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting	415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance	482 N
Moving mass	1,559 g
Product weight	3,684 g
Centre of gravity of the moving mass as a function of the stroke	96.4 mm
alternative connections	See product drawing
Pneumatic connection	G1/8
Materials note	Free of copper and PTFE Conforms to RoHS
Material cover	Wrought Aluminium alloy
Material seals	NBR
Material housing	Wrought Aluminium alloy
Material piston rod	High alloy steel, non-corrosive

Attributes

manufacturer	FESTO
dimensions	32 x 0 x 160
Weight	3.673 kg
working pressure [bar]	1,5÷10
thread	G 1/8
stroke [mm]	160
piston diameter	32 mm
type	pneumatic cylinder
max. velocity [m/s]	0.8
static moment rating about X axis [Nm]	49.14
static moment rating about Y axis [Nm]	44.73
static moment rating about Z axis [Nm]	44.73
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
