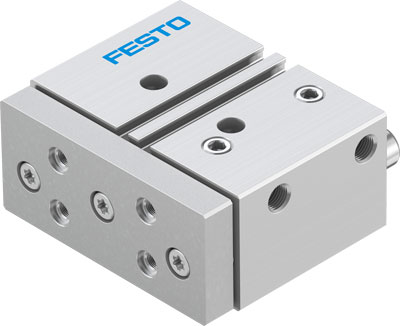

DFM-25-20-P-A-KF FESTO

170922 FESTO 170922 FESTO

dimensions

25 x 0 x 20

Weight

1.17 kg

country of origin

max. velocity [m/s]

0.8

piston diameter

25 mm

static moment rating about X axis [Nm]

36.04

static moment rating about Y axis [Nm]

15.37

static moment rating about Z axis [Nm]

15.37

stroke [mm]

thread

G 1/8

type

pneumatic cylinder

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

1,5÷10

Details Attributes

DFM-25-20-P-A-KF FESTO

Pneumatic cylinder

Data sheet:

Name: DFM-25-20-P-A-KF FESTO
Rating: 4.6 (7 reviews)

Feature	Value
Centre of gravity distance from working load to yoke plate	50 mm
Stroke	20 mm
Piston diameter	25 mm
Operating mode of drive unit	Yoke
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Guide	Recirculating ball bearing guide
Design structure	Guide
Position detection	For proximity sensor
Operating pressure MPa	0.15 ... 1 MPa
Operating pressure	1.5 ... 10 bar
Max. speed	0.8 m/s
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	0 - No corrosion stress
Ambient temperature	-5 ... 60 °C
Impact energy in end positions	0.3 Nm
Max. force Fy	863 N
Max. force Fy static	1,060 N
Max. force Fz	863 N
Max. force Fz static	1,060 N
Max. torque Mx	29.35 Nm
Max. torque Mx static	36.04 Nm
Max. torque My	12.52 Nm
Max. torque My static	15.37 Nm
Max. torque Mz	12.52 Nm
Max. torque Mz static	15.37 Nm
Max. permissible torque load Mx as a function of the stroke	6.14 Nm
Max. useful load as a function of the stroke at defined distance xs	110 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting	247 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance	295 N
Moving mass	595 g
Product weight	1,173 g
Centre of gravity of the moving mass as a function of the stroke	24.6 mm
alternative connections	See product drawing
Pneumatic connection	G1/8
Materials note	Free of copper and PTFE Conforms to RoHS
Material cover	Wrought Aluminium alloy
Material seals	NBR
Material housing	Wrought Aluminium alloy
Material piston rod	High alloy steel, non-corrosive

manufacturer	FESTO
dimensions	25 x 0 x 20
Weight	1.17 kg
working pressure [bar]	1,5÷10
thread	G 1/8
stroke [mm]	20
piston diameter	25 mm
type	pneumatic cylinder
max. velocity [m/s]	0.8
country of origin
static moment rating about X axis [Nm]	36.04
static moment rating about Y axis [Nm]	15.37
static moment rating about Z axis [Nm]	15.37
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
