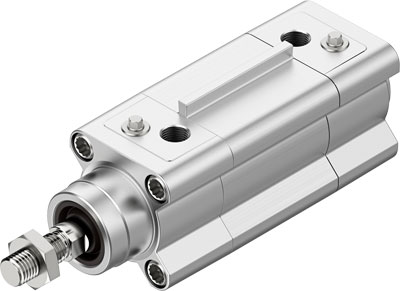

Pneumatic cylinder (norm: ISO 15552)

DSBF-C-63-25-PPVA-N3-R FESTO

1776043 FESTO 1776043 FESTO
dimensions 63 x 0 x 25
Weight 2.123 kg
country of origin
material stainless steel
materiał łożyskowania POM
norm ISO 15552
piston diameter 63 mm
stroke [mm] 25
thread G 3/8
thread M16x1,5
type pneumatic cylinder
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
working pressure [bar] 0,4÷12

DSBF-C-63-25-PPVA-N3-R FESTO

Pneumatic cylinder (norm: ISO 15552)

Data sheet:




Feature Value
Stroke 25 mm
Piston diameter 63 mm
Piston rod thread M16x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Conforms to standard ISO 15552
Piston-rod end Male thread
Design structure Piston
Piston rod
Profile barrel
Position detection For proximity sensor
Operating pressure MPa 0.04 ... 1.2 MPa
Operating pressure 0.4 ... 12 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 3 - High corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 1.3 J
Cushioning length 22 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting 1,682 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance 1,870 N
Moving mass with 0 mm stroke 460 g
Additional weight per 10 mm stroke 65 g
Basic weight for 0 mm stroke 1,803 g
Additional mass factor per 10 mm of stroke 25 g
Mounting type with internal (female) thread
with accessories
Optional
Pneumatic connection G3/8
Materials note Conforms to RoHS
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought Aluminium alloy
Material piston rod High alloy steel, non-corrosive
Material piston rod wiper seal TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushion piston material POM
Material cylinder barrel Anodised wrought aluminium alloy
Material nut High alloy steel, non-corrosive
Material bearing POM
Material of flange screw steel, galvanized
manufacturer FESTO
dimensions 63 x 0 x 25
Weight 2.123 kg
working pressure [bar] 0,4÷12
thread G 3/8
thread M16x1,5
material stainless steel
norm ISO 15552
stroke [mm] 25
piston diameter 63 mm
type pneumatic cylinder
country of origin
materiał łożyskowania POM
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
