You are here: Power transmission Couplings EAMC-40-66-15-20 FESTO

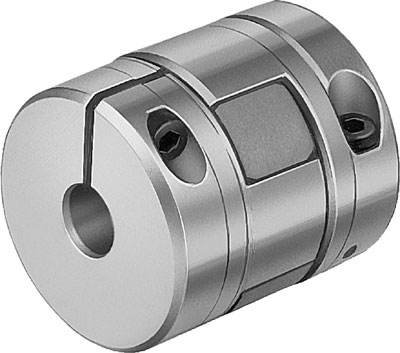

Flexible coupling

EAMC-40-66-15-20 FESTO

123845 FESTO 123845 FESTO
Weight 0.167 kg
transmissible torque moment [Nm] 21
type flexible coupling

EAMC-40-66-15-20 FESTO

Flexible coupling

Data sheet:




Feature Value
Holder diameter 1 15 mm
Holder diameter 2 20 mm
Size 40
Nominal length 66 mm
Assembly position Any
Max. speed 6,500 1/min
Storage temperature -25 ... 60 °C
Relative air humidity 0 - 95 %
Ambient temperature -25 ... 60 °C
Mass moment of inertia 42.3 kgmm2
Transferable torque 21 Nm
Product weight 139 g
Materials note Conforms to RoHS
Attributes
manufacturer FESTO
dimensions 0 x 0 x 0
Weight 0.167 kg
transmissible torque moment [Nm] 21
type flexible coupling

Technical materials
