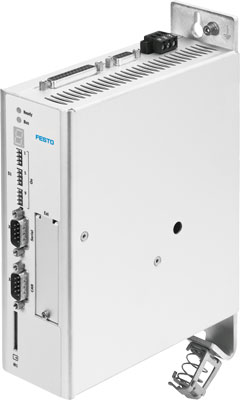

Feature |
Value |
| Mounting type |
On sub-base
Tightened |
| Product weight |
2,000 g |
| Display |
Seven-segment display |
| Control elements |
DIP switches |
| Authorisation |
BIA
C-Tick
c UL us - Listed (OL) |
| CE mark (see declaration of conformity) |
to EU directive for EMC
to EU directive for machinery |
| Certificate issuing department |
BG MFS 09031 |
| Storage temperature |
-25 ... 70 °C |
| Ambient temperature |
0 ... 50 °C |
| Relative air humidity |
0 - 90 %
non-condensing |
| Protection class |
IP20 |
| Degree of contamination |
2 |
| Materials note |
Conforms to RoHS |
| Nominal current, load supply |
8 A |
| Peak current, load supply |
12 A |
| Mains filter |
Integrated |
| Nominal voltage, load supply DC |
48 V |
| Max. intermediate circuit voltage, DC |
58 V |
| Braking resistance |
17 Ohm |
| Braking resistance pulse power |
0.5 kVA |
| Nominal DC voltage, logic power supply |
24 V |
| Permissible range, logic voltage |
± 20 % |
| Nominal current, logic supply |
0.2 A |
| Output voltage range AC |
0 V up to input voltage |
| Max. peak current duration |
2 s |
| Output frequency |
0 ... 2,000 Hz |
| Max. length of motor cable without external mains filter |
25 m |
| Controller operating mode |
PWM-MOSFET power output stage |
| Operating mode |
Micro step, >4000 step/U |
| Adjustable current reduction |
Using software |
| Step adjustment |
Using software |
| Protective function |
I²t monitoring
Temperature monitoring
Current monitoring
Voltage failure detection
Drag error monitoring |
| Nominal current adjustment |
Using software |
| Max. step frequency |
4 kHz |
| Parameters configuring interface |
RS232 (9600...115000 Bits/s) |
| Fieldbus coupling |
CANopen
Profibus DP |
| Bus connection |
Plug
9-pin
Sub-D |
| Bus terminating resistor |
Integrated |
| Rotor position sensor |
Encoder |
| Position sensor |
Encoder |
| Encoder interface output, function |
Setpoint specification for downstream slave drive unit |
| Encoder interface input, characteristics |
RS422 |
| Encoder interface input, function |
In synchronous operation as specified speed in RPM for the slave drive unit |
| Digital logic output characteristics |
Freely configurable to a given extent
Not electrically isolated |
| Max. current, digital logic outputs |
100 mA |
| Number of analogue setpoint inputs |
1 |
| Setpoint input working range |
± 10 V |
| Setpoint input impedance |
20 kOhm |
| Number of analogue monitor outputs |
1 |
| Monitor output working range |
± 10 V |
| Safety function |
Safe torque off (STO) |
| Performance level (PL) |
Safe torque off (STO)/category 3, performance level d |
