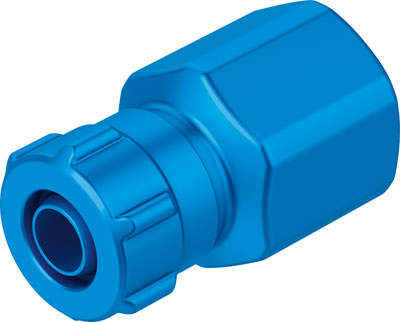

ACK-1/8-PK-4 FESTO

3714 FESTO 3714 FESTO

Weight

0.006 kg

country of origin

type

quick release couplers and plugs

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com

Details Attributes

ACK-1/8-PK-4 FESTO

Quick release couplers and plugs

Data sheet:

Name: ACK-1/8-PK-4 FESTO
Rating: 4.6 (15 reviews)

Feature	Value
Nominal size	3.4 mm
Type of seal on screw-in stud	Sealing ring
Assembly position	Any
Maritime classification	see certificate
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Ambient temperature	-10 ... 60 °C
Pneumatic connection, port 1	Female thread G1/8
Pneumatic connection, port 2	For tubing outside diameter 6 mm
Materials note	Conforms to RoHS
Material housing	Aluminium

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.006 kg
type	quick release couplers and plugs
country of origin
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
