You are here: Pneumatics and hydraulics Connectors and adapters KS4-1/4-A-R FESTO

Quick release couplers and plugs

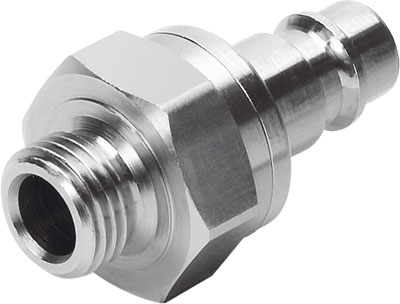

KS4-1/4-A-R FESTO

Name: KS4-1/4-A-R FESTO
Rating: 5 (10 reviews)

531677 FESTO 531677 FESTO

Weight	0.05 kg
type	quick release couplers and plugs
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-]

Details Attributes

KS4-1/4-A-R FESTO

Quick release couplers and plugs

Feature	Value
Nominal size	8 mm
Operating pressure complete temperature range	-0.95 ... 12 bar
Standard nominal flow rate	765 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 - Low corrosion stress
Ambient temperature	-10 ... 60 °C
Nominal tightening torque	9.5 Nm
Tolerance for nominal tightening torque	± 15 %
Product weight	46 g
Pneumatic connection, port 1	Male thread G1/4
Materials note	Conforms to RoHS
