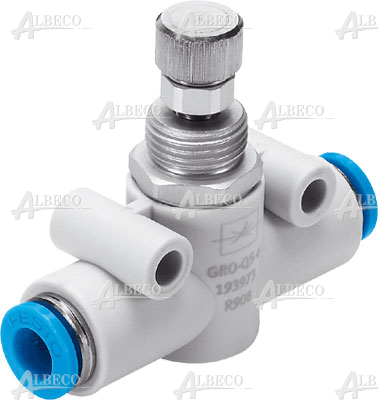

GRO-QS-4 FESTO
Pressure regulator
Feature | Value |
---|---|
Valve function | Throttle function |
Pneumatic connection, port 1 | QS-4 |
Pneumatic connection, port 2 | QS-4 |
Adjusting element | Knurled screw |
Mounting type | Front panel installation with through hole with accessories Optional |
Standard nominal flow rate in flow control direction | 110 l/min |
Standard nominal flow rate in non-return direction | 165 l/min |
Operating pressure | 0 ... 10 bar |
Ambient temperature | -10 ... 60 °C |
Material housing | PA-reinforced |
Assembly position | Any |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Medium temperature | -10 ... 60 °C |
Product weight | 12 g |
Materials note | Conforms to RoHS |
Material seals | NBR |
Material release ring | POM |
Material adjusting screw | High alloy steel |
manufacturer | FESTO |
dimensions | 4 x 0 x 0 |
Weight | 0.013 kg |
working pressure [bar] | 0÷10 |
material | POM |
type | pressure regulator |
country of origin | |
valve function | Flow control function |
working medium | Sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
